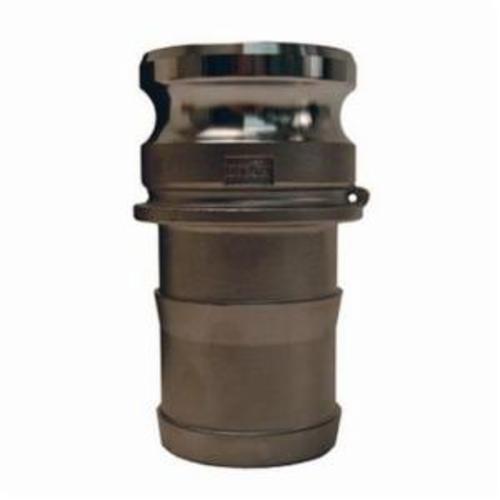

Dixon® G50-E-AL Global Type E Cam & Groove Adapter, 1/2 in Nominal, Male Adapter x Hose Shank End Style, Aluminum
CBPN: 184031
UPC:697464139881
MPN:G50-E-AL
Price:
$14.99 / EA
DESCRIPTION
Dixon® Cam & Groove Adapter, Type E, Series: Global, Fitting/Connector Type: Adapter, 1/2 in Nominal, Male Adapter x Hose Shank, 3-11/32 in Length, 150 psi, 70 deg F, Aluminum
Dixon® G50-E-AL Global Type E Cam & Groove Adapter, 1/2 in Nominal, Male Adapter x Hose Shank End Style, Aluminum
CBPN: 184031
MPN:G50-E-AL
UPC:697464139881
Price:
$14.99 / EA
DESCRIPTION
Dixon® Cam & Groove Adapter, Type E, Series: Global, Fitting/Connector Type: Adapter, 1/2 in Nominal, Male Adapter x Hose Shank, 3-11/32 in Length, 150 psi, 70 deg F, Aluminum
Specifications
Brand: Dixon®
Weight: 0.06 lbs
Fitting/Connector Type: Adapter
Type: Type E
Nominal Size: 1/2 in
End Style: Male Adapter x Hose Shank
Material: Aluminum
Length: 3-11/32 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 150 psi
Series: Global
Temperature Rating: 70 deg F
Application: For use with liquids
Standards and Approvals: A-A-59326D
Item Features
- On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg F
- Made to Dixon specifications and branded Dixon
- Pressure rating is based on the seal of the mating part
- 15/16 in OD x 1 in L adapter
- 1-1/32 in collar
