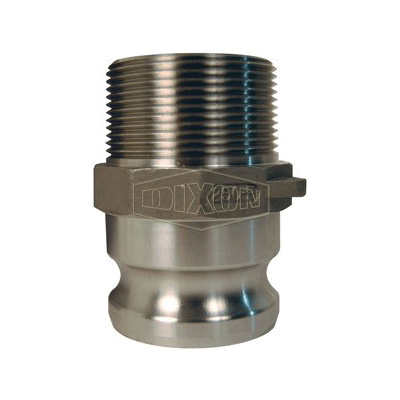

Dixon® G300-F-SS Type F Cam and Groove Adapter, 3 in, Male Adapter x MNPT, 316 Stainless Steel, Import
CBPN: 153981
MPN:G300-F-SS
Price:
$129.45 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 3 in Nominal Size, Male Adapter x MNPT, 4-3/32 in Length, 125 psi, 316 Stainless Steel, 3-19/32 in Dia, Import
Dixon® G300-F-SS Type F Cam and Groove Adapter, 3 in, Male Adapter x MNPT, 316 Stainless Steel, Import
CBPN: 153981
MPN:G300-F-SS
Price:
$129.45 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 3 in Nominal Size, Male Adapter x MNPT, 4-3/32 in Length, 125 psi, 316 Stainless Steel, 3-19/32 in Dia, Import
Specifications
Brand: Dixon®
Weight: 3.15 lbs
Fitting/Connector Type: Adapter
Type: Type F
Nominal Size: 3 in
End Style: Male Adapter x MNPT
Material: 316 Stainless Steel
Dimensions: 3-19/32 in Dia
Length: 4-3/32 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Range: 80-250 psi
Pressure Rating: 125 psi
Application: Designed for use with liquids
Warranty: Limited
Domestic/Import: Import
Country of Origin: CN
Item Features
- Designed to interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- For use with liquid
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 125 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
