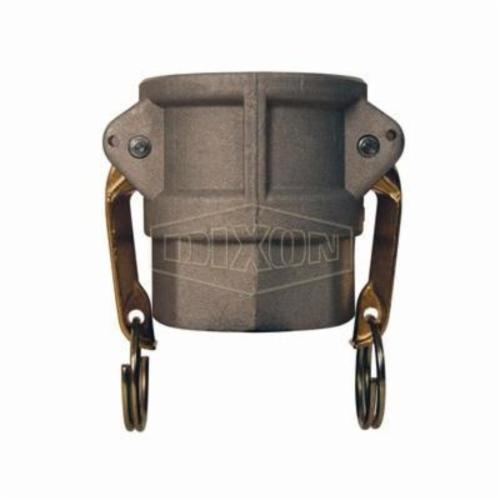

Dixon® G300-D-AL Global Type D Cam and Groove Coupler, 3 in Nominal, Female Coupler x FNPT End Style, Aluminum, Import
CBPN: 142075
MPN:G300-D-AL
Price:
$42.35 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type D, Series: Global, Coupling Fitting/Connector, 3 in Nominal, Female Coupler x FNPT End Style, 3-3/4 in Length, 125 psi Pressure, Aluminum, Import
Dixon® G300-D-AL Global Type D Cam and Groove Coupler, 3 in Nominal, Female Coupler x FNPT End Style, Aluminum, Import
CBPN: 142075
MPN:G300-D-AL
Price:
$42.35 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type D, Series: Global, Coupling Fitting/Connector, 3 in Nominal, Female Coupler x FNPT End Style, 3-3/4 in Length, 125 psi Pressure, Aluminum, Import
Specifications
Brand: Dixon®
Weight: 1.52 lbs
Fitting/Connector Type: Coupling
Type: Type D
Nominal Size: 3 in
End Style: Female Coupler x FNPT
Material: Aluminum
Length: 3-3/4 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 125 psi
Series: Global
Application: Designed for use with liquids
Warranty: Limited
Domestic/Import: Import
Country of Origin: CN
Standards and Approvals: Designed to interchange with all products produced to A-A-59326D
Item Features
- 9-25/32 in open x 5-5/32 in closed across cam arm
- A380 permanent mold aluminum
- Brass handle
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
