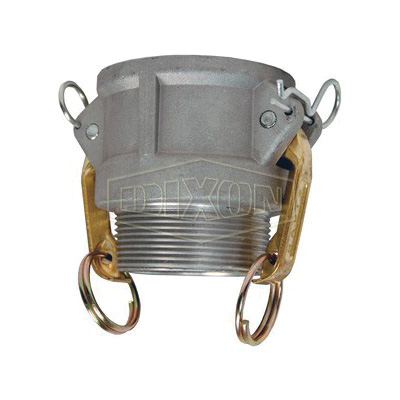

Dixon® G300-B-AL Type B Cam and Groove Coupler, 3 in Nominal, Female Coupler x MNPT End Style, Aluminum, Import
CBPN: 192109
MPN:G300-B-AL
Price:
$39.85 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type B, Coupling Fitting/Connector, 3 in Nominal, Female Coupler x MNPT End Style, 5-5/32 in Length, 125 psi Pressure, Aluminum, 3-3/4 in H Dimensions, Import
Dixon® G300-B-AL Type B Cam and Groove Coupler, 3 in Nominal, Female Coupler x MNPT End Style, Aluminum, Import
CBPN: 192109
MPN:G300-B-AL
Price:
$39.85 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type B, Coupling Fitting/Connector, 3 in Nominal, Female Coupler x MNPT End Style, 5-5/32 in Length, 125 psi Pressure, Aluminum, 3-3/4 in H Dimensions, Import
Specifications
Brand: Dixon®
Weight: 1.44 lbs
Fitting/Connector Type: Coupling
Type: Type B
Nominal Size: 3 in
End Style: Female Coupler x MNPT
Material: Aluminum
Dimensions: 3-3/4 in H
Length: 5-5/32 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 125 psi
Application: Designed for use with liquids
Warranty: Limited
Domestic/Import: Import
Country of Origin: CN
Item Features
- Interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- Buna seals are standard
- Pressure rating for adapters is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 125 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
