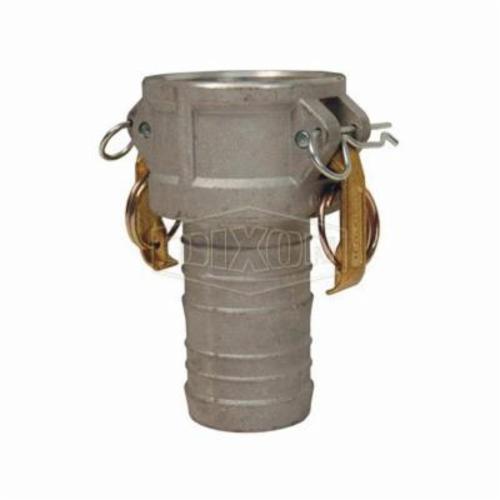

Dixon® G250-C-AL Global Type-C Cam and Groove Coupler, 2-1/2 in Nominal, Female Coupler x Hose Shank End Style, Aluminum, Domestic
CBPN: 180380
MPN:G250-C-AL
Price:
$43.56 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type-C, Series: Global, Coupling Fitting/Connector, 2-1/2 in Nominal, Female Coupler x Hose Shank End Style, 5-5/16 in Length, 150 psi Pressure, Aluminum, Domestic
Dixon® G250-C-AL Global Type-C Cam and Groove Coupler, 2-1/2 in Nominal, Female Coupler x Hose Shank End Style, Aluminum, Domestic
CBPN: 180380
MPN:G250-C-AL
Price:
$43.56 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type-C, Series: Global, Coupling Fitting/Connector, 2-1/2 in Nominal, Female Coupler x Hose Shank End Style, 5-5/16 in Length, 150 psi Pressure, Aluminum, Domestic
Specifications
Brand: Dixon®
Weight: 1.14 lbs
Fitting/Connector Type: Coupling
Type: Type C
Nominal Size: 2-1/2 in
End Style: Female Coupler x Hose Shank
Material: Aluminum
Length: 5-5/16 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 150 psi
Series: Global
Application: Designed for use with liquids
Warranty: Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: Designed to interchange with all products produced to A-A-59326D
Item Features
- 8 in open x 4-13/32 in closed across cam arm
- A380 permanent mold aluminum
- Brass handle
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
