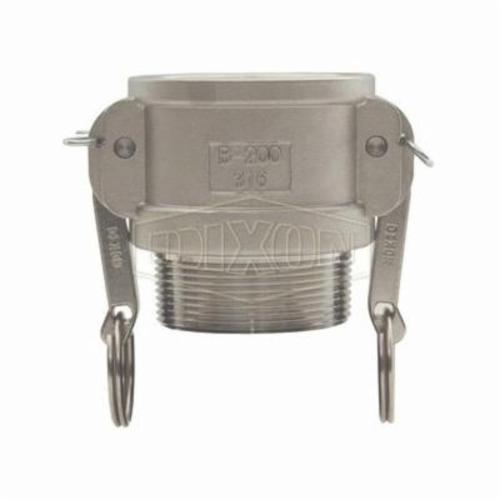

Dixon® G250-B-SS Type B Cam and Groove Coupler, 2-1/2 in Nominal, Female Coupler x MNPT End Style, 316 Stainless Steel, Domestic
CBPN: 205400
UPC:089109750078
MPN:G250-B-SS
Price:
$109.25 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type B, Coupling Fitting/Connector, 2-1/2 in Nominal, Female Coupler x MNPT End Style, 3-5/16 in Length, 150 psi Pressure, 316 Stainless Steel, Domestic
Dixon® G250-B-SS Type B Cam and Groove Coupler, 2-1/2 in Nominal, Female Coupler x MNPT End Style, 316 Stainless Steel, Domestic
CBPN: 205400
MPN:G250-B-SS
UPC:089109750078
Price:
$109.25 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type B, Coupling Fitting/Connector, 2-1/2 in Nominal, Female Coupler x MNPT End Style, 3-5/16 in Length, 150 psi Pressure, 316 Stainless Steel, Domestic
Specifications
Brand: Dixon®
Weight: 2.29 lbs
Fitting/Connector Type: Coupling
Type: Type B
Nominal Size: 2-1/2 in
End Style: Female Coupler x MNPT
Material: 316 Stainless Steel
Length: 3-5/16 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 150 psi
Application: Designed for use with liquids
Warranty: Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: Designed to interchange with all products produced to A-A-59326D
Item Features
- 8-3/2 in open x 4-3/8 in closed across cam arm
- Buna seals construction
- 316 investment cast stainless steel
- Stainless steel handle
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
