Dixon® G200-F-SS

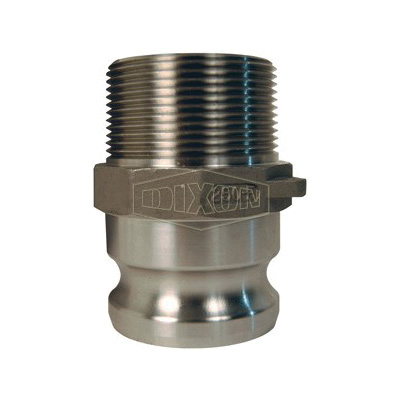

Dixon® G200-F-SS Type F Cam and Groove Adapter, 2 in, Male Adapter x MNPT, 316 Stainless Steel, Import

CBPN:110625

MPN:G200-F-SS

Price:
$47.20 / EA
in stock: 19

Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 2 in Nominal Size, Male Adapter x MNPT, 3-19/32 in Length, 250 psi, 316 Stainless Steel, Import

Dixon® G200-F-SS Type F Cam and Groove Adapter, 2 in, Male Adapter x MNPT, 316 Stainless Steel, Import

CBPN:110625

MPN:G200-F-SS

Price:
$47.20 / EA
in stock: 19

Dixon Logo

Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 2 in Nominal Size, Male Adapter x MNPT, 3-19/32 in Length, 250 psi, 316 Stainless Steel, Import

Specifications

BrandDixon®
Domestic/ImportImport
End StyleMale Adapter x MNPT
Fitting/Connector TypeAdapter
Length3-19/32 in
Material316 Stainless Steel
Nominal Size2 in
Pressure Rating250 psi
TypeType F

Item Features

  • Designed to interchange with all products produced to A-A-59326D
  • Wash hands after handling
  • Made to Dixon specifications and branded Dixon
  • For use with liquid
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • 250 psi at ambient temperature 70 deg F pressure
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
