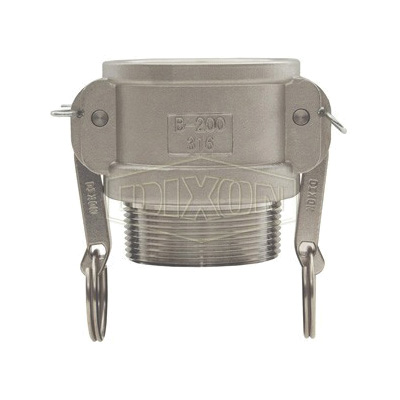

Dixon® G200-B-SS Type B Cam and Groove Coupler, 2 in Nominal, Female Coupler x MNPT End Style, 316 Stainless Steel, Import
CBPN:129482
MPN:G200-B-SS
Price:
$65.36Â /Â EA
DESCRIPTION
Dixon® Cam and Groove Coupler, Type B, Coupling Fitting/Connector, 2 in Nominal, Female Coupler x MNPT End Style, 3-29/32 in Length, 250 psi Pressure, 316 Stainless Steel, 3-3/32 in H Dimensions, Import
Dixon® G200-B-SS Type B Cam and Groove Coupler, 2 in Nominal, Female Coupler x MNPT End Style, 316 Stainless Steel, Import
CBPN:129482
MPN:G200-B-SS
Price:
$65.36Â /Â EA
Â
Specifications
Brand: Dixon®
Weight:Â 1.61lbs
End Style:Â Female Coupler x MNPT
Length:Â 3-29/32 in
Material:Â 316 Stainless Steel
Nominal Size:Â 2 in
Type:Â Type B
Fitting/Connector Type:Â Coupling
Pressure Rating:Â 250 psi
Dimensions:Â 3-3/32 in H
Manufacturer Name:Â Dixon Valve & Coupling
Application:Â Designed for use with liquids
Warranty:Â Limited
Domestic/Import:Â Import
Country of Origin:Â CN
Item Features
- Interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- Buna seals are standard
- Pressure rating for adapters is based on the seal of the mating part
- Stainless steel handle
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 250 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- http://youtu.be/Vgth_9M5IRM?list=PL10BD55ADAF82DEDA
