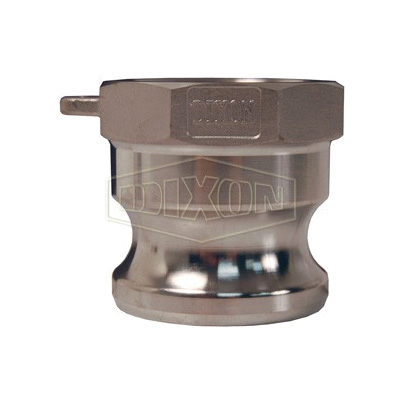

Dixon® G150-A-SS Type A Cam and Groove Adapter, 1-1/2 in, Male Adapter x FNPT, 316 Stainless Steel, Import
CBPN: 127194
MPN:G150-A-SS
Price:
$35.90 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Type A, Fitting/Connector Type: Adapter, 1-1/2 in Nominal Size, Male Adapter x FNPT, 2-3/16 in Length, 250 psi, 316 Stainless Steel, Import
Dixon® G150-A-SS Type A Cam and Groove Adapter, 1-1/2 in, Male Adapter x FNPT, 316 Stainless Steel, Import
CBPN: 127194
MPN:G150-A-SS
Price:
$35.90 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Type A, Fitting/Connector Type: Adapter, 1-1/2 in Nominal Size, Male Adapter x FNPT, 2-3/16 in Length, 250 psi, 316 Stainless Steel, Import
Specifications
Brand: Dixon®
Weight: 0.75 lbs
Fitting/Connector Type: Adapter
Type: Type A
Nominal Size: 1-1/2 in
End Style: Male Adapter x FNPT
Material: 316 Stainless Steel
Length: 2-3/16 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 250 psi
Application: Designed for use with liquids
Warranty: Limited
Domestic/Import: Import
Country of Origin: CN
Item Features
- Interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- Buna seals are standard
- Pressure rating for adapters is based on the seal of the mating part
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 250 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
