Dixon® G100-F-SS

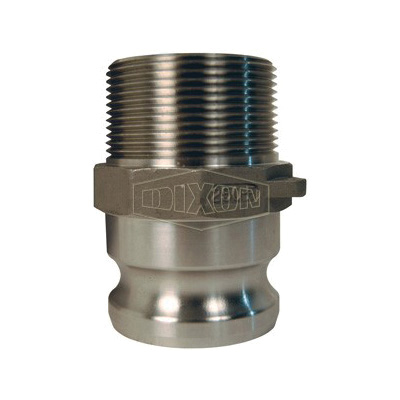

Dixon® G100-F-SS Type F Cam and Groove Adapter, 1 in, Male Adapter x MNPT, 316 Stainless Steel, Import

CBPN:121101

UPC:089109710058

MPN:G100-F-SS

Price:
$25.54 / EA

Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 1 in Nominal Size, Male Adapter x MNPT, 2-23/32 in Length, 250 psi, 316 Stainless Steel, 1-29/32 in H, Import

Dixon® G100-F-SS Type F Cam and Groove Adapter, 1 in, Male Adapter x MNPT, 316 Stainless Steel, Import

CBPN:121101

MPN:G100-F-SS

UPC:089109710058

Price:
$25.54 / EA

Dixon Logo

Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 1 in Nominal Size, Male Adapter x MNPT, 2-23/32 in Length, 250 psi, 316 Stainless Steel, 1-29/32 in H, Import

Specifications

BrandDixon®
Length2-23/32 in
Material316 Stainless Steel
TypeType F
Domestic/ImportImport
End StyleMale Adapter x MNPT
Fitting/Connector TypeAdapter
Nominal Size1 in
Pressure Rating250 psi
Dimensions1-29/32 in H
Weight0.57 lbs

Item Features

  • Designed to interchange with all products produced to A-A-59326D
  • Wash hands after handling
  • Made to Dixon specifications and branded Dixon
  • For use with liquid
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • 250 psi at ambient temperature 70 deg F pressure
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
