Dixon® G100-D-AL

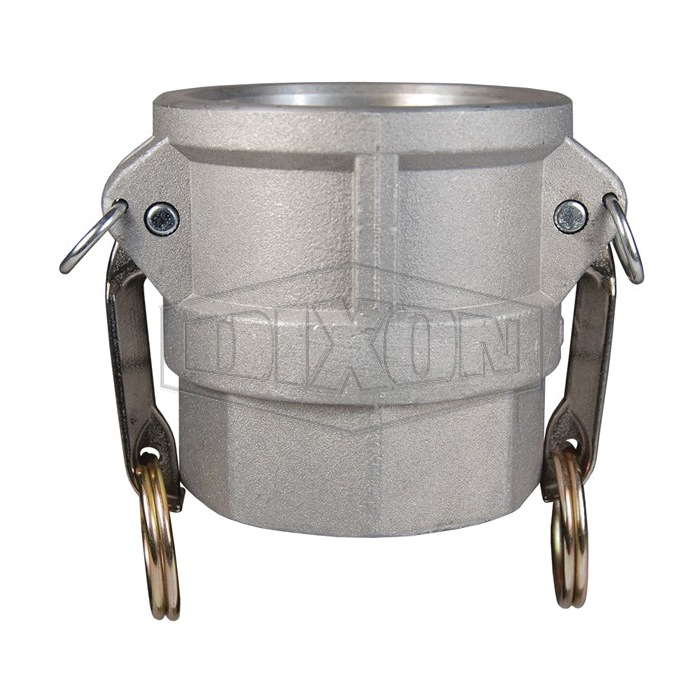

Dixon® G100-D-AL Type D Cam and Groove Coupler, 1 in Nominal, Female Coupler x FNPT End Style, Aluminum

CBPN:128063

MPN:G100-D-AL

Price:
$15.47 / EA

DESCRIPTION

Dixon® Cam and Groove Coupler, Type D, Coupling Fitting/Connector, 1 in Nominal, Female Coupler x FNPT End Style, 2-21/32 in Length, 250 psi Pressure, Aluminum, 2-15/32 in H Dimensions

Dixon® G100-D-AL Type D Cam and Groove Coupler, 1 in Nominal, Female Coupler x FNPT End Style, Aluminum

CBPN:128063

MPN:G100-D-AL

Price:
$15.47 / EA

Dixon Logo

DESCRIPTION

Dixon® Cam and Groove Coupler, Type D, Coupling Fitting/Connector, 1 in Nominal, Female Coupler x FNPT End Style, 2-21/32 in Length, 250 psi Pressure, Aluminum, 2-15/32 in H Dimensions

Specifications

BrandDixon®
Weight0.41lbs
Fitting/Connector TypeCoupling
TypeType D
Nominal Size1 in
End StyleFemale Coupler x FNPT
MaterialAluminum
Dimensions2-15/32 in H
Length2-21/32 in
Manufacturer NameDixon Valve & Coupling
Pressure Rating250 psi
ApplicationDesigned for use with liquids
WarrantyLimited

Item Features

  • Designed to interchange with all products produced to A-A-59326D
  • Made to Dixon specifications and branded Dixon
  • Buna seals are standard
  • Stainless steel handle
  • A380 permanent mold aluminum
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • 250 psi at ambient temperature 70 deg F pressure
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
