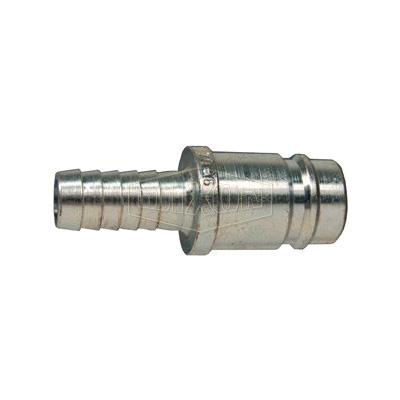

Dixon® DCP2545 Air Chief Industrial Quick Connect Plug, 1/2 x 3/8 in Nominal, Quick Connect Plug x Hose Barb, 300 psi Pressure, Steel, Domestic
CBPN:73675
MPN:DCP2545
Price:
$7.52Â /Â EA
DESCRIPTION
Dixon® Quick Connect Plug, Air Chief Industrial, 1/2 x 3/8 in Nominal, Quick Connect Plug x Hose Barb End Style, 2-1/6 in Length, 300 psi Pressure, -40 to 250 deg F, Steel, 11/16 in OD, Domestic
Dixon® DCP2545 Air Chief Industrial Quick Connect Plug, 1/2 x 3/8 in Nominal, Quick Connect Plug x Hose Barb, 300 psi Pressure, Steel, Domestic
CBPN:73675
MPN:DCP2545
Price:
$7.52Â /Â EA
Â
DESCRIPTION
Dixon® Quick Connect Plug, Air Chief Industrial, 1/2 x 3/8 in Nominal, Quick Connect Plug x Hose Barb End Style, 2-1/6 in Length, 300 psi Pressure, -40 to 250 deg F, Steel, 11/16 in OD, Domestic
Specifications
Brand: Dixon®
Weight:Â 0.082lbs
End Style:Â Quick Connect Plug x Hose Barb
Length:Â 2-1/6 in
Material:Â Steel
Nominal Size:Â 1/2 x 3/8 in
Temperature Rating:Â -40 to 250 deg F
Type:Â Air Chief Industrial
Pressure Rating:Â 300 psi
Dimensions:Â 11/16 in OD
Manufacturer Name:Â Dixon Valve & Coupling
Warranty:Â Limited
Domestic/Import:Â Domestic
Country of Origin:Â US
Item Features
- Air chief industrial couplers are the popular industrial design and will interchange with many other makes
- For air service only
- Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination
- Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
