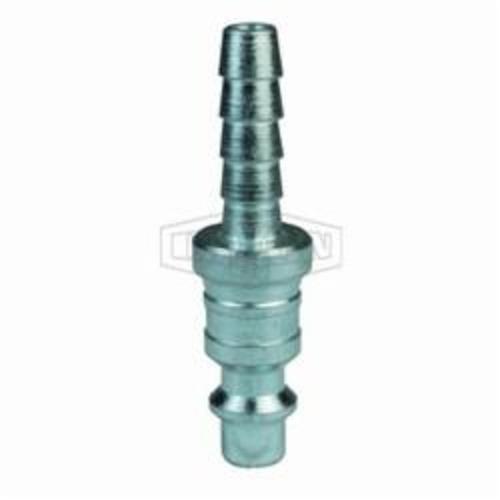

Dixon® D3S3 DF Series Industrial Interchange Pneumatic Nipple, 3/8 in Nominal, Quick-Connect x Standard Hose Barb, 500 psi Pressure, Steel
CBPN:89643
MPN:D3S3
Price:
$4.80Â /Â EA
DESCRIPTION
Dixon® Pneumatic Nipple, Industrial Interchange, Series: DF Series, 3/8 in Nominal, Quick-Connect x Standard Hose Barb End Style, 2.21 in Length, 500 psi Pressure, -40 to 250 deg F, Steel, Polished Chrome, 3/4 in OD
Dixon® D3S3 DF Series Industrial Interchange Pneumatic Nipple, 3/8 in Nominal, Quick-Connect x Standard Hose Barb, 500 psi Pressure, Steel
CBPN:89643
MPN:D3S3
Price:
$4.80Â /Â EA
Â
DESCRIPTION
Dixon® Pneumatic Nipple, Industrial Interchange, Series: DF Series, 3/8 in Nominal, Quick-Connect x Standard Hose Barb End Style, 2.21 in Length, 500 psi Pressure, -40 to 250 deg F, Steel, Polished Chrome, 3/4 in OD
Specifications
Brand: Dixon®
Weight:Â 0.08lbs
End Style:Â Quick-Connect x Standard Hose Barb
Length:Â 2.21 in
Material:Â Steel
Nominal Size:Â 3/8 in
Series:Â DF Series
Temperature Rating:Â -40 to 250 deg F
Type:Â Industrial Interchange
Finish:Â Polished Chrome
Pressure Rating:Â 500 psi
Dimensions:Â 3/4 in OD
Manufacturer Name:Â Dixon Valve & Coupling
Application:Â Industrial Fittings
Standards and Approvals:Â RoHS Compliant
Item Features
- Machined components are manufactured using solid bar stock
