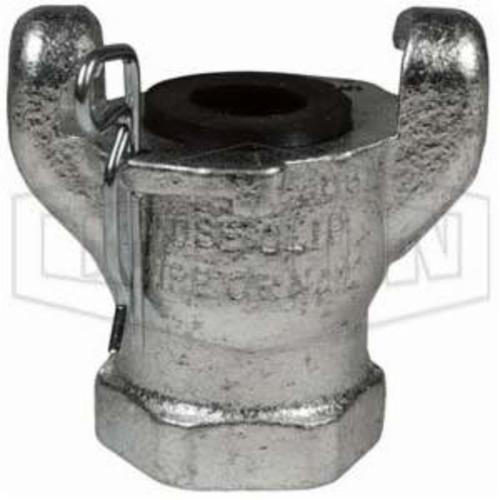

Dixon® AM13 Air King™ Universal Hose End, 1 in, FNPT, Iron, Domestic
CBPN: 43150
MPN:AM13
Price:
$12.44 / EA
Prop 65:
DESCRIPTION
Dixon® Universal Hose End, Series: Air King™, 1 in Nominal, FNPT, 2-1/16 in Length, 150 psi, Iron, 2-1/2 in W, Domestic
Dixon® AM13 Air King™ Universal Hose End, 1 in, FNPT, Iron, Domestic
CBPN: 43150
MPN:AM13
Price:
$12.44 / EA
Prop 65:
DESCRIPTION
Dixon® Universal Hose End, Series: Air King™, 1 in Nominal, FNPT, 2-1/16 in Length, 150 psi, Iron, 2-1/2 in W, Domestic
Specifications
Brand: Dixon®
Weight: 0.53 lbs
Nominal Size: 1 in
End Style: FNPT
Material: Iron
Dimensions: 2-1/2 in W
Length: 2-1/16 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 150 psi
Series: Air King™
Includes: Safety Clip
Application: For air and water service only
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: A-A-59553 | Mil Spec. WWC-633D
Item Features
- Rubber seal
- Supplied with AWR4 rubber washer
- Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
- Only one air king safety clip or wire type retainer is required for each air king universal coupling
- Air king is for air and water service only
- Never use any air king coupling for steam service!
- The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
- To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
- Pressure rating given at ambient temperature 70 deg F
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
