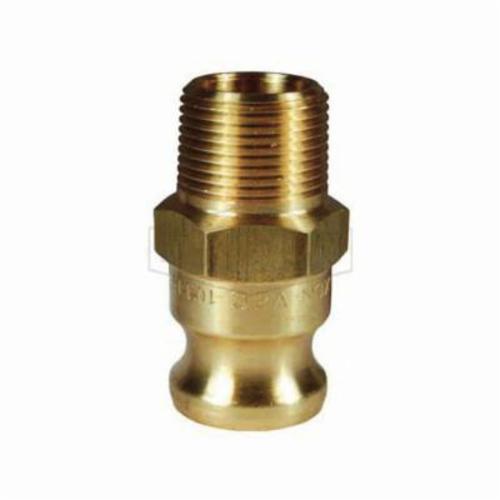

Dixon® 75-F-BR Boss-Lock™ Type F Cam and Groove Adapter, 3/4 in, Male Adapter x MNPT, Brass, Domestic
CBPN: 94294
UPC:089109803729
MPN:75-F-BR
Price:
$39.38 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Type F, Series: Boss-Lock™, Fitting/Connector Type: Adapter, 3/4 in Nominal Size, Male Adapter x MNPT, 1-3/8 in A/F Hex, 2-1/2 in Length, 250 psi, Brass, Domestic
Dixon® 75-F-BR Boss-Lock™ Type F Cam and Groove Adapter, 3/4 in, Male Adapter x MNPT, Brass, Domestic
CBPN: 94294
MPN:75-F-BR
UPC:089109803729
Price:
$39.38 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Type F, Series: Boss-Lock™, Fitting/Connector Type: Adapter, 3/4 in Nominal Size, Male Adapter x MNPT, 1-3/8 in A/F Hex, 2-1/2 in Length, 250 psi, Brass, Domestic
Specifications
Brand: Dixon®
Weight: 0.49 lbs
Fitting/Connector Type: Adapter
Type: Type F
Nominal Size: 3/4 in
End Style: Male Adapter x MNPT
Material: Brass
Hex Size: 1-3/8 in A/F
Length: 2-1/2 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 250 psi
Series: Boss-Lock™
Application: Designed for use with liquids
Domestic/Import: Domestic
Country of Origin: US
Item Features
- Pressure rating is based on the seal of the mating part
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
