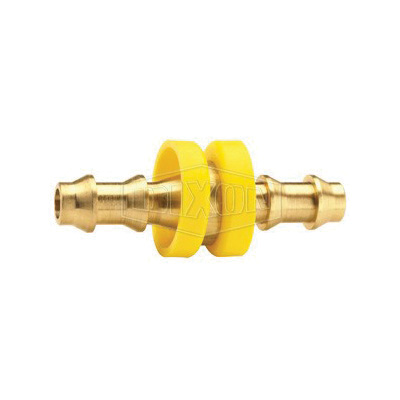

Dixon® 2960808C Push-On Hose Mender, 1/2 in Nominal, Brass, Domestic
CBPN: 105029
UPC:089109731046
MPN:2960808C
Price:
$6.00 / EA
Prop 65:
DESCRIPTION
Dixon® Push-On Hose Mender, Fitting/Connector Type: Coupling, 1/2 in Nominal, 2-1/4 in Length, 2 Barb, 1.02 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic
Dixon® 2960808C Push-On Hose Mender, 1/2 in Nominal, Brass, Domestic
CBPN: 105029
MPN:2960808C
UPC:089109731046
Price:
$6.00 / EA
Prop 65:
DESCRIPTION
Dixon® Push-On Hose Mender, Fitting/Connector Type: Coupling, 1/2 in Nominal, 2-1/4 in Length, 2 Barb, 1.02 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic
Specifications
Brand: Dixon®
Weight: 0.08 lbs
Fitting/Connector Type: Coupling
Nominal Size: 1/2 in
Material: Brass
Barb Length: 1.02 in
Length: 2-1/4 in
Manufacturer Name: Dixon Valve & Coupling
Number of Barb: 2
Pressure Rating: 350 psi
Temperature Rating: -40 to 150 deg F
Application: For pneumatic service, most fluids, low pressure hydraulics and non-potable water service
Warranty: Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: SAE J476/J512/J514/J516 | PROP65: This product can expose you to chemicals including lead, which is known to the State of Califonia to cause cancer and birth defects or other reproductive ham. Wash hands after handling. For more information go to www.P65Wamings.ca.gov.
Item Features
- Trim hose end with smooth square cut
- Lubricate either push-on fitting, hose or both
- Insert push-on fitting into hose until first barb is in hose
- Place end of fitting against a flat object (bench, wall, etc.) and grip the hose 1 in from end
- Push with a steady force until end of hose is covered by yellow plastic cap
