Dixon® 2720808C

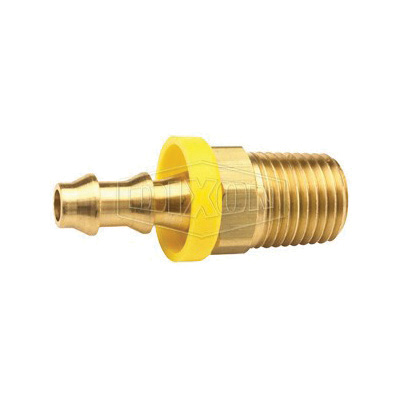

Dixon® 2720808C Push-On Hose Barb, 1/2 in Nominal, MNPT x Hose Barb, Brass, Domestic

CBPN:105037

MPN:2720808C

Price:
$5.18 / EA
Prop 65:

DESCRIPTION

Dixon® Push-On Hose Barb, Fitting/Connector Type: Adapter, 1/2 in Nominal, MNPT x Hose Barb End Style, 7/8 in Hex, 2.07 in Length, 2 Barb, 1.02 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic

Dixon® 2720808C Push-On Hose Barb, 1/2 in Nominal, MNPT x Hose Barb, Brass, Domestic

CBPN:105037

MPN:2720808C

Price:
$5.18 / EA

Prop 65:
Dixon Logo

DESCRIPTION

Dixon® Push-On Hose Barb, Fitting/Connector Type: Adapter, 1/2 in Nominal, MNPT x Hose Barb End Style, 7/8 in Hex, 2.07 in Length, 2 Barb, 1.02 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic

Specifications

BrandDixon®
Weight0.122lbs
Fitting/Connector TypeAdapter
Nominal Size1/2 in
End StyleMNPT x Hose Barb
MaterialBrass
Barb Length1.02 in
Hex Size7/8 in
Length2.07 in
Manufacturer NameDixon Valve & Coupling
Number of Barb2
Pressure Rating350 psi
Temperature Rating-40 to 150 deg F
ApplicationFor pneumatic service, most fluids, low pressure hydraulics and non-potable water service
WarrantyLimited
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsSAE J476/J512/J514/J516 | PROP65: This product can expose you to chemicals including lead, which is known to the State of Califonia to cause cancer and birth defects or other reproductive ham. Wash hands after handling. For more information go to www.P65Wamings.ca.gov.

Item Features

  • Dixon® push-on fittings are intended for use with lok-on (push-on style) hose only
  • No hose clamp or ferrule needed
  • Push-on fittings will properly grip lock-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the yellow plastic cap
  • Caution: push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap
