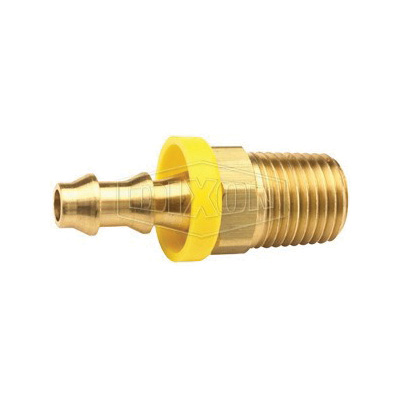

Dixon® 2720608C Hose Barb, 1/2-14 x 3/8 in Nominal, MNPT x Hose Barb, Brass, Domestic
CBPN: 105035
MPN:2720608C
Price:
$5.92 / EA
Prop 65:
DESCRIPTION
Dixon® Hose Barb, Fitting/Connector Type: Adapter, 1/2-14 x 3/8 in Nominal, MNPT x Hose Barb End Style, 7/8 in Hex, 1.97 in Length, 2 Barb, 0.92 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic
Dixon® 2720608C Hose Barb, 1/2-14 x 3/8 in Nominal, MNPT x Hose Barb, Brass, Domestic
CBPN: 105035
MPN:2720608C
Price:
$5.92 / EA
Prop 65:
DESCRIPTION
Dixon® Hose Barb, Fitting/Connector Type: Adapter, 1/2-14 x 3/8 in Nominal, MNPT x Hose Barb End Style, 7/8 in Hex, 1.97 in Length, 2 Barb, 0.92 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic
Specifications
Brand: Dixon®
Weight: 0.12 lbs
Fitting/Connector Type: Adapter
Nominal Size: 1/2-14 x 3/8 in
End Style: MNPT x Hose Barb
Material: Brass
Barb Length: 0.92 in
Hex Size: 7/8 in
Length: 1.97 in
Manufacturer Name: Dixon Valve & Coupling
Number of Barb: 2
Pressure Rating: 350 psi
Temperature Rating: -40 to 150 deg F
Application: For pneumatic service, most fluids, low pressure hydraulics and non-potable water service
Warranty: Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: SAE J476/J512/J514/J516 | PROP65: This product can expose you to chemicals including lead, which is known to the State of Califonia to cause cancer and birth defects or other reproductive ham. Wash hands after handling. For more information go to www.P65Wamings.ca.gov.
Item Features
- Push-on fittings are intended for use with lok-on (push-on style) hose
- No hose clamp or ferrule needed
- Lock-on fittings will properly grip lok-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap
