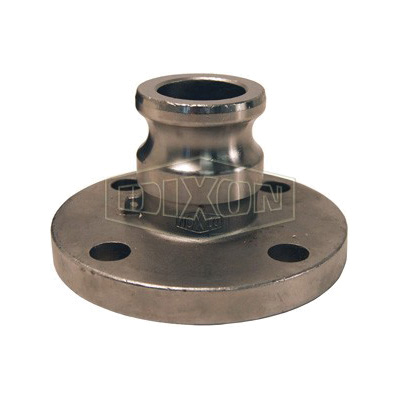

Dixon® 200-AL-SS Cam and Groove Adapter, 2 in, Adapter x Class 150 Flange, 316 Stainless Steel
CBPN: 22148
MPN:200-AL-SS
Price:
$215.10 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Fitting/Connector Type: Adapter, 2 in Nominal Size, Adapter x Class 150 Flange, 7/16 in Thickness, 2-7/32 in Length, 250 psi, 316 Stainless Steel, 6 in Dia
Dixon® 200-AL-SS Cam and Groove Adapter, 2 in, Adapter x Class 150 Flange, 316 Stainless Steel
CBPN: 22148
MPN:200-AL-SS
Price:
$215.10 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Fitting/Connector Type: Adapter, 2 in Nominal Size, Adapter x Class 150 Flange, 7/16 in Thickness, 2-7/32 in Length, 250 psi, 316 Stainless Steel, 6 in Dia
Specifications
Brand: Dixon®
Weight: 3.33 lbs
Fitting/Connector Type: Adapter
Nominal Size: 2 in
End Style: Adapter x Class 150 Flange
Material: 316 Stainless Steel
Dimensions: 6 in Dia
Length: 2-7/32 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 250 psi
Thickness: 7/16 in
Application: Designed for use with liquids
Item Features
- Aluminum and unplated iron flanges are flat faced
- Stainless steel flanges are raised face
- Flanges are designed to mate with 150 lb flange
- Flanges have the same bolt hole pattern as an ANSI 150 lb. flange, the thickness may vary
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 250 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
