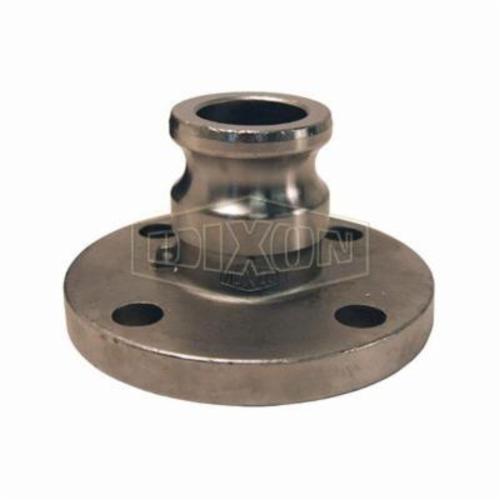

Dixon® 150-AL-SS Cam and Groove Adapter, 1-1/2 in, Adapter x Class 150 Flange, 316 Stainless Steel, Domestic
CBPN: 200520
UPC:089109717057
MPN:150-AL-SS
Price:
$185.21 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Fitting/Connector Type: Adapter, 1-1/2 in Nominal Size, Adapter x Class 150 Flange, 11/16 in Thickness, 2-15/16 in Length, 250 psi, 316 Stainless Steel, Domestic
Dixon® 150-AL-SS Cam and Groove Adapter, 1-1/2 in, Adapter x Class 150 Flange, 316 Stainless Steel, Domestic
CBPN: 200520
MPN:150-AL-SS
UPC:089109717057
Price:
$185.21 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Fitting/Connector Type: Adapter, 1-1/2 in Nominal Size, Adapter x Class 150 Flange, 11/16 in Thickness, 2-15/16 in Length, 250 psi, 316 Stainless Steel, Domestic
Specifications
Brand: Dixon®
Weight: 3.81 lbs
Fitting/Connector Type: Adapter
Nominal Size: 1-1/2 in
End Style: Adapter x Class 150 Flange
Material: 316 Stainless Steel
Length: 2-15/16 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 250 psi
Thickness: 11/16 in
Application: Designed for use with liquids
Domestic/Import: Domestic
Country of Origin: US
Item Features
- Aluminum and unplated iron flanges are flat faced
- Stainless steel flanges are raised face
- Flanges are designed to mate with 150 lb flange
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
