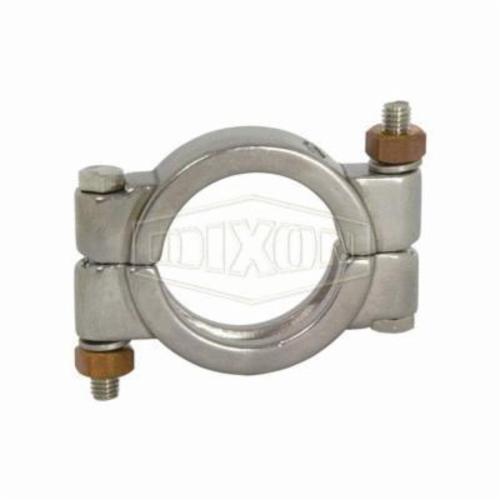

Dixon® 13MHP800 Bolt Clamp, 8 in Tube, 304 Stainless Steel, Domestic
CBPN: 118021
UPC:089109802630
MPN:13MHP800
Price:
$113.49 / EA
DESCRIPTION
Dixon® Bolt Clamp, 8 in Tube, 20 ft-lb Recommended Torque, 304 Stainless Steel, Domestic
Dixon® 13MHP800 Bolt Clamp, 8 in Tube, 304 Stainless Steel, Domestic
CBPN: 118021
MPN:13MHP800
UPC:089109802630
Price:
$113.49 / EA
DESCRIPTION
Dixon® Bolt Clamp, 8 in Tube, 20 ft-lb Recommended Torque, 304 Stainless Steel, Domestic
Specifications
Brand: Dixon®
Weight: 3.7 lbs
Tube Size: 8 in
Material: 304 Stainless Steel
Manufacturer Name: Dixon Valve & Coupling
Recommended Torque: 20 ft-lb
Warranty: Limited
Domestic/Import: Domestic
Country of Origin: US
Item Features
- All nuts are tightened to 20 ft-lb of torque
- 250 psi at 70 deg F and 150 psi at 250 deg F pressure
- Service pressure ratings are based on the following parameters: matching elastomer gasket and weld ferrules properly aligned and assembled with the clamps tightened to required torques, tests are done hydrostatically with no water hammer or shock loads
- Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures
