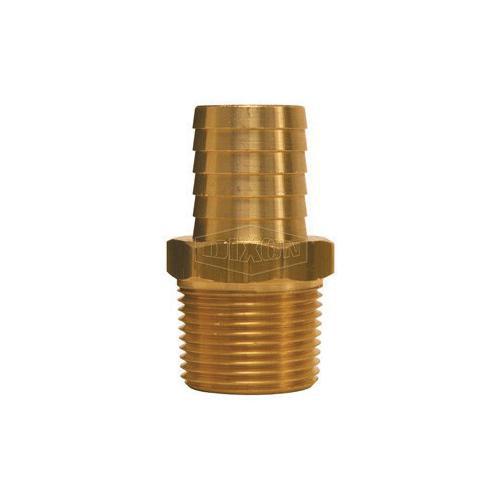

Dixon® 1021616C 102 Standard Insert, 1 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
CBPN:19137
MPN:1021616C
Price:
$14.24Â /Â EA
DESCRIPTION
Dixon®, 1021616C, Insert, Standard, Series: 102, Fitting/Connector: Adapter, 1 in Nominal, MNPT x Hose Barb End Style, 1-1/16 in Hex, 2-1/16 in Length, 5 Barb, 1.19 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic
Dixon® 1021616C 102 Standard Insert, 1 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
CBPN:19137
MPN:1021616C
Price:
$14.24Â /Â EA
Â
DESCRIPTION
Dixon®, 1021616C, Insert, Standard, Series: 102, Fitting/Connector: Adapter, 1 in Nominal, MNPT x Hose Barb End Style, 1-1/16 in Hex, 2-1/16 in Length, 5 Barb, 1.19 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic
Specifications
Brand: Dixon®
Weight:Â 0.36lbs
End Style:Â MNPT x Hose Barb
Length:Â 2-1/16 in
Material:Â Brass
Nominal Size:Â 1 in
Series:Â 102
Temperature Rating:Â -40 to 160 deg F
Type:Â Standard
Fitting/Connector Type:Â Adapter
Pressure Rating:Â 150 psi
Hex Size:Â 1-1/16 in
Barb Length:Â 1.19 in
Manufacturer Name:Â Dixon Valve & Coupling
Number of Barb:Â 5
Application:Â For use with hose clamps or crimped ferrules
Warranty:Â Limited
Domestic/Import:Â Domestic
Country of Origin:Â US
Item Features
- All standard hose fittings are intended for use with hose clamps or crimped ferrules
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- 5 barbs
- 9/32 in W hex
- 1-1/16 in Dia barb
- Fixed fitting swivel torque
- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
- Barbed fitting for a tight seal on hoses
- Dryseal construction
