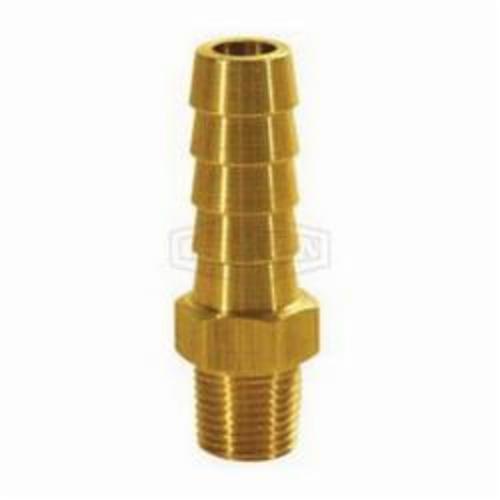

Dixon® 1021212C 102 Standard Hose Fitting, 3/4 in x 3/4-14 Nominal, MNPT x Hose Barb End Style, 360 CDA Brass, Domestic
CBPN: 21071
MPN:1021212C
Price:
$7.16 / EA
Prop 65:
DESCRIPTION
Dixon®, 1021212C, Hose Fitting, Standard, Series: 102, Fitting/Connector: Adapter, 3/4 in x 3/4-14 Nominal, MNPT x Hose Barb End Style, 1-1/16 in Hex, 2.19 in Length, 4 Barb, 1.19 in Barb Length, 250 psi Pressure, 72 deg F, 360 CDA Brass, 3/4 in ID Dimensions, Domestic
Dixon® 1021212C 102 Standard Hose Fitting, 3/4 in x 3/4-14 Nominal, MNPT x Hose Barb End Style, 360 CDA Brass, Domestic
CBPN: 21071
MPN:1021212C
Price:
$7.16 / EA
Prop 65:
DESCRIPTION
Dixon®, 1021212C, Hose Fitting, Standard, Series: 102, Fitting/Connector: Adapter, 3/4 in x 3/4-14 Nominal, MNPT x Hose Barb End Style, 1-1/16 in Hex, 2.19 in Length, 4 Barb, 1.19 in Barb Length, 250 psi Pressure, 72 deg F, 360 CDA Brass, 3/4 in ID Dimensions, Domestic
Specifications
Brand: Dixon®
Weight: 0.18 lbs
Fitting/Connector Type: Adapter
Type: Standard
Nominal Size: 3/4 in x 3/4-14
End Style: MNPT x Hose Barb
Material: 360 CDA Brass
Barb Length: 1.19 in
Dimensions: 3/4 in ID
Hex Size: 1-1/16 in
Length: 2.19 in
Manufacturer Name: Dixon Valve & Coupling
Number of Barb: 4
Pressure Rating: 250 psi
Series: 102
Temperature Rating: 72 deg F
Application: For use with hose clamps or crimped ferrules
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: SAE J476/J512/J514/J516
Item Features
- Over 225 available products
- Full sizes range from 1/8 up to 1-1/4 in
- Special sizes, configurations and thread specifications available on request
- Available range of brass crimp ferrules and crimping tools
- Wide selection of band and worm gear hose clamps available through Dixon
- Warning: this products contains a chemicals known to the State of California to caused birth defects or other reproductive harm
- Do not use in connections with drinking water
- Wash hands after handling
- 0.97 in L barb
- 4 barbs
- 7/32 in W hex
- 13/16 in Dia barb
- Fixed fitting swivel torque
- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
- Barbed fitting for a tight seal on hoses
- Dryseal construction
