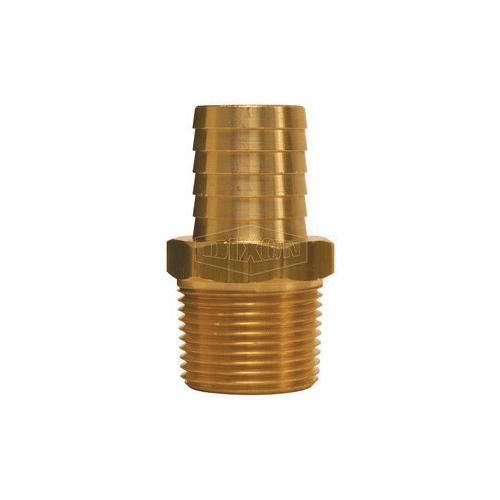

Dixon® 1020808C 102 Standard Insert, 1/2 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
CBPN:8606
MPN:1020808C
Price:
$4.64 / EA
Prop 65:
DESCRIPTION
Dixon®, 1020808C, Insert, Standard, Series: 102, Fitting/Connector: Adapter, 1/2 in Nominal, MNPT x Hose Barb End Style, 7/8 in Hex, 1-31/32 in Length, 4 Barb, 1.19 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic
Dixon® 1020808C 102 Standard Insert, 1/2 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
CBPN:8606
MPN:1020808C
Price:
$4.64 / EA
Prop 65:
DESCRIPTION
Dixon®, 1020808C, Insert, Standard, Series: 102, Fitting/Connector: Adapter, 1/2 in Nominal, MNPT x Hose Barb End Style, 7/8 in Hex, 1-31/32 in Length, 4 Barb, 1.19 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic
Specifications
Brand: Dixon®
Weight: 0.12 lbs
Fitting/Connector Type: Adapter
Type: Standard
Nominal Size: 1/2 in
End Style: MNPT x Hose Barb
Material: Brass
Barb Length: 1.19 in
Hex Size: 7/8 in
Length: 1-31/32 in
Manufacturer Name: Dixon Valve & Coupling
Number of Barb: 4
Pressure Rating: 150 psi
Series: 102
Temperature Rating: -40 to 160 deg F
Application: For use with hose clamps or crimped ferrules
Warranty: Limited
Domestic/Import: Domestic
Country of Origin: US
Item Features
- All standard hose fittings are intended for use with hose clamps or crimped ferrules
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- 1.19 in L barb
- 4 barbs
- 7/32 in W hex
- 17/32 in Dia barb
- Fixed fitting swivel torque
- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
- Barbed fitting for a tight seal on hoses
- Dryseal construction
