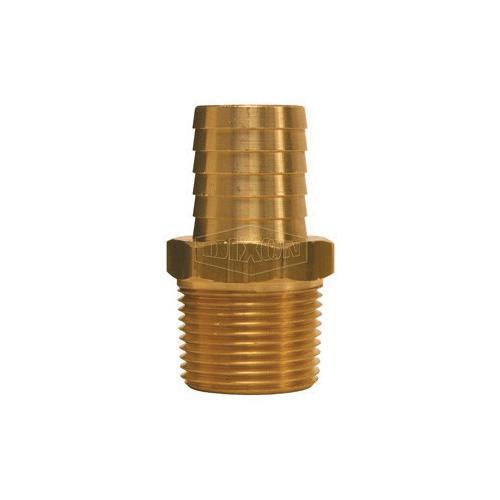

Dixon® 1020506C 102 Standard Hose Barb, 3/8 x 5/16 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
CBPN:124442
MPN:1020506C
Price:
$3.18Â /Â EA
DESCRIPTION
Dixon®, 1020506C, Hose Barb, Standard, Series: 102, Fitting/Connector: Adapter, 3/8 x 5/16 in Nominal, MNPT x Hose Barb End Style, 11/16 in Hex, 1-49/64 in Length, 4 Barb, 0.97 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic
Dixon® 1020506C 102 Standard Hose Barb, 3/8 x 5/16 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
CBPN:124442
MPN:1020506C
Price:
$3.18Â /Â EA
Â
DESCRIPTION
Dixon®, 1020506C, Hose Barb, Standard, Series: 102, Fitting/Connector: Adapter, 3/8 x 5/16 in Nominal, MNPT x Hose Barb End Style, 11/16 in Hex, 1-49/64 in Length, 4 Barb, 0.97 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic
Specifications
Brand: Dixon®
Weight:Â 0.055lbs
End Style:Â MNPT x Hose Barb
Length:Â 1-49/64 in
Material:Â Brass
Nominal Size:Â 3/8 x 5/16 in
Series:Â 102
Temperature Rating:Â -40 to 160 deg F
Type:Â Standard
Fitting/Connector Type:Â Adapter
Pressure Rating:Â 150 psi
Hex Size:Â 11/16 in
Barb Length:Â 0.97 in
Manufacturer Name:Â Dixon Valve & Coupling
Number of Barb:Â 4
Application:Â For use with hose clamps or crimped ferrules
Warranty:Â Limited
Domestic/Import:Â Domestic
Country of Origin:Â US
Item Features
- All standard hose fittings are intended for use with hose clamps or crimped ferrules
- 360 cda brass construction
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- 0.97 in L barb
- 4 barbs
- 3/16 in W hex
- 11/32 in Dia barb
- Fixed fitting swivel torque
- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
- Barbed fitting for a tight seal on hoses
