CRANE® 76E-1/2

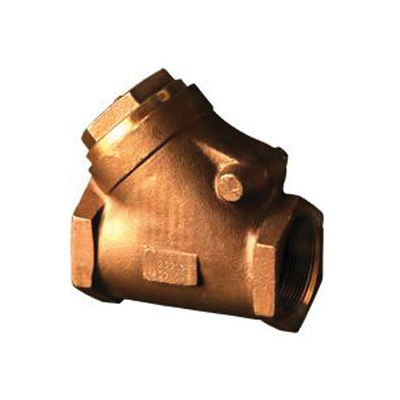

CRANE® 76E-1/2 76E Y-Pattern Swing Check Valve, 1/2 in Nominal, Threaded End Style, 300 lb, Bronze Body

CBPN:11893

MPN:76E-1/2

Price:
$117.43 / EA

DESCRIPTION

CRANE® Swing Check Valve, Y-Pattern, Series: 76E, 1/2 in Nominal, Threaded End Style, 300 lb Pressure Class, No Low Lead Compliance, 2.15 in Inlet to Outlet Length, 1.64 in Top to Inlet Center, Bronze Body, Brass Trim

CRANE® bronze body swing check valves in Y pattern design come with threaded and soldered end connections and are available in ASME pressure classes 125, 150, 200 and 300.

CRANE® 76E-1/2 76E Y-Pattern Swing Check Valve, 1/2 in Nominal, Threaded End Style, 300 lb, Bronze Body

CBPN:11893

MPN:76E-1/2

Price:
$117.43 / EA

Crane logo

DESCRIPTION

CRANE® Swing Check Valve, Y-Pattern, Series: 76E, 1/2 in Nominal, Threaded End Style, 300 lb Pressure Class, No Low Lead Compliance, 2.15 in Inlet to Outlet Length, 1.64 in Top to Inlet Center, Bronze Body, Brass Trim

CRANE® bronze body swing check valves in Y pattern design come with threaded and soldered end connections and are available in ASME pressure classes 125, 150, 200 and 300.

Specifications

BrandCRANE®
Body MaterialBronze
End StyleThread
Nominal Size1/2 in
Series76E
TypeY-Pattern
Pressure Class300 lb
Low Lead ComplianceNo
Trim MaterialBrass
ApplicationGeneral Services Plumbing, Commercial Plumbing and HVAC, Industrial Plumbing and HVAC, Utility and Marine
IncludesThreaded Cap
Inlet to Outlet Length2.15 in
Manufacturer NameCrane ChemPharma Energy
Standard ApprovalsASTM B62 C83600 Body,ASTM B-16 H02 Disc,ASTM B-61 C92200 Cap,MSS SP-80 Type 3
Top to Inlet Center1.64 in
Weight0.8lbs

Item Features

  • Brass disc
