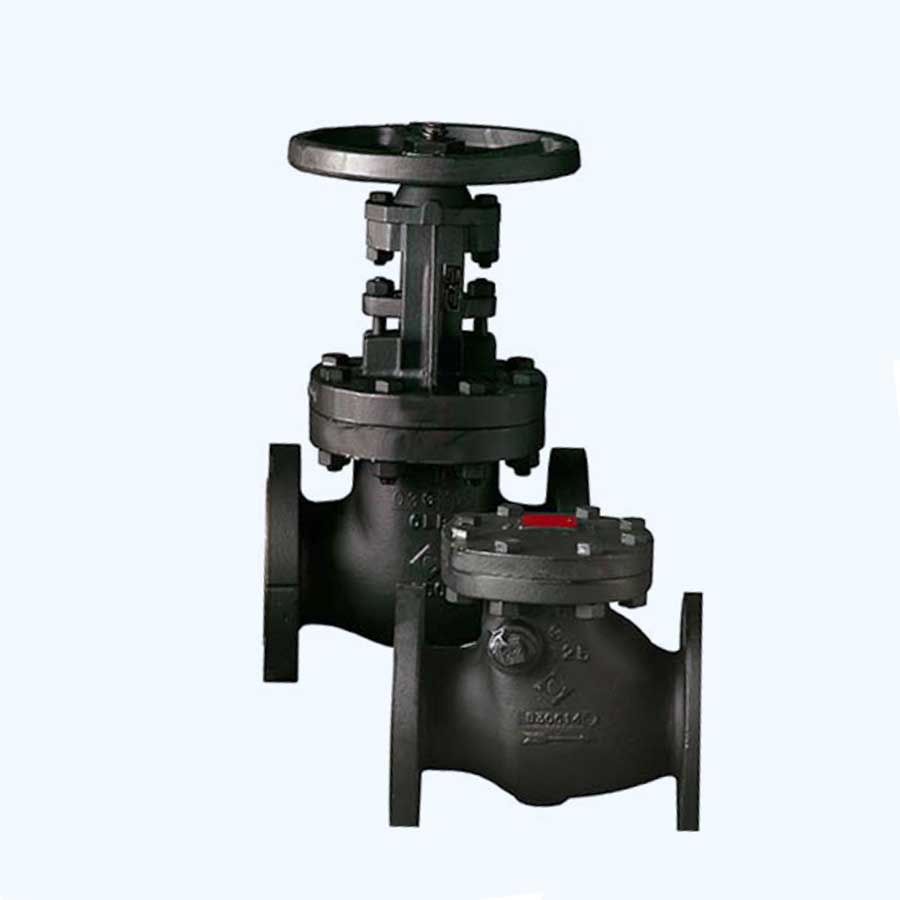

CRANE® 7-1/2E-10 Gate Valve, 10 in Nominal, Flanged End Style, 250 lb, Iron Body
CBPN: 38908
MPN:7-1/2E-10
Price:
$30524.48 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
CRANE® Gate Valve, Series: 7-1/2E, 10 in Nominal, Flanged, 250 psi, 250 lb, 18 in Inlet to Outlet Length, 41.75 in Top to Inlet Center, Iron Body, Bronze Trim, Non-Asbestos Packing, 22 in Hand Wheel
CRANE® iron body valves are proven performers in mechanical systems of commercial buildings throughout America. Chemical plants, steel mills, shipyards, refineries, pulp and paper mills, and utilities have also found that CRANE iron body valves do the job better and longer for their many general services.
CRANE® 7-1/2E-10 Gate Valve, 10 in Nominal, Flanged End Style, 250 lb, Iron Body
CBPN: 38908
MPN:7-1/2E-10
Price:
$30524.48 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
CRANE® Gate Valve, Series: 7-1/2E, 10 in Nominal, Flanged, 250 psi, 250 lb, 18 in Inlet to Outlet Length, 41.75 in Top to Inlet Center, Iron Body, Bronze Trim, Non-Asbestos Packing, 22 in Hand Wheel
CRANE® iron body valves are proven performers in mechanical systems of commercial buildings throughout America. Chemical plants, steel mills, shipyards, refineries, pulp and paper mills, and utilities have also found that CRANE iron body valves do the job better and longer for their many general services.
Specifications
Brand: CRANE®
Weight: 920 lbs
Nominal Size: 10 in
End Style: Flanged
Pressure Class: 250 lb
Body Material: Iron
Softgoods Material: Non-Asbestos Packing
Actuator Type: Handwheel
Hand Wheel Diameter: 22 in
Inlet to Outlet Length: 18 in
Manufacturer Name: Crane ChemPharma Energy
Series: 7-1/2E
Top to Inlet Center: 41.75 in
Trim Material: Bronze
Domestic/Import: Import
