CRANE 438 Series Gate Valve

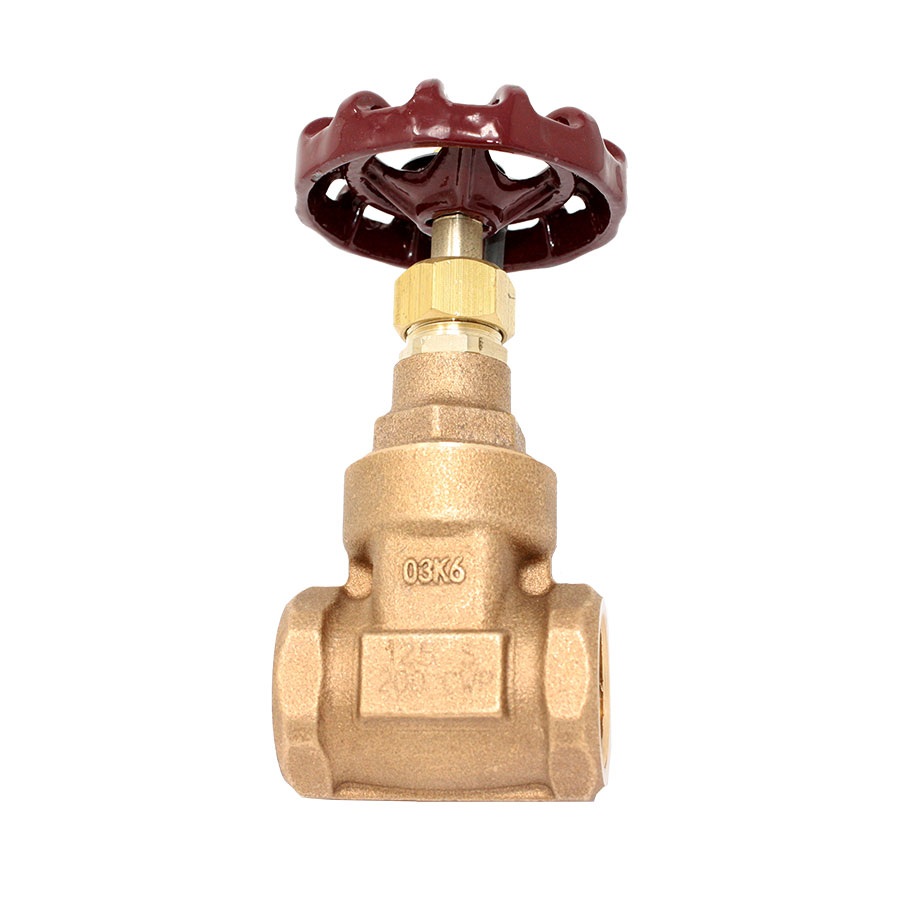

CRANE® 438 Gate Valve, 2 in, FNPT, 125 lb, Bronze, Non-Rising Stem, Hand Wheel Actuator

CBPN:11809

MPN:438-2

Price:
$260.09 / EA

DESCRIPTION

CRANE® Gate Valve, Series: 438, 2 in Nominal Size, FNPT, 200 psi, 125 lb, -20 to 150 deg F, Hand Wheel Actuator, Non-Rising Stem, 3.25 in Inlet to Outlet Length, 7.48 in Top to Inlet Center, Bronze Body, Copper Silicon Bronze Trim, Graphite (Asbestos Free) Packing, Synthetic Glass Fiber Nitrile Filled Gasket, 4.06 in Hand Wheel Diameter

CRANE® 438 Gate Valve, 2 in, FNPT, 125 lb, Bronze, Non-Rising Stem, Hand Wheel Actuator

CBPN:11809

MPN:438-2

Price:
$260.09 / EA

Crane logo

DESCRIPTION

CRANE® Gate Valve, Series: 438, 2 in Nominal Size, FNPT, 200 psi, 125 lb, -20 to 150 deg F, Hand Wheel Actuator, Non-Rising Stem, 3.25 in Inlet to Outlet Length, 7.48 in Top to Inlet Center, Bronze Body, Copper Silicon Bronze Trim, Graphite (Asbestos Free) Packing, Synthetic Glass Fiber Nitrile Filled Gasket, 4.06 in Hand Wheel Diameter

Specifications

BrandCRANE®
Weight5.7lbs
Nominal Size2 in
End StyleFNPT
Pressure Class125 lb
Body MaterialBronze
Softgoods MaterialGraphite (Asbestos Free) Packing
Actuator TypeHandwheel
Hand Wheel Diameter4.06 in
Inlet to Outlet Length3.25 in
Manufacturer NameCrane ChemPharma Energy
Series438
Top to Inlet Center7.48 in
TypeY-Pattern

Item Features

  • MSS SP-80, Type 1
