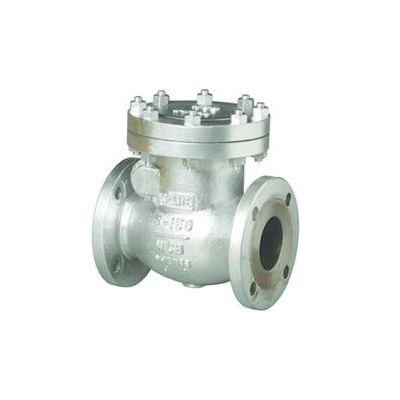

CRANE® 147XU-20 Swing Check Valve, 20 in, Flanged, 150 lb, Cast Steel Body
CBPN: 221699
MPN:147XU-20
Price:
$41336.92 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
CRANE® Swing Check Valve, Series: L147, 20 in Nominal Size, Flanged, 285 psi, 150 lb, -20 to 100 deg F, 38.50 in Inlet to Outlet Length, 26.50 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim
CRANE® swing check valves prevent reversal of flow through pipe lines. Most CRANE® swing check valves can be installed in horizontal or vertical, upward flow, piping. They offer low resistance to flow and are particularly suited to low velocity service.
Alternate trims are available. Please contact us for information.
CRANE® 147XU-20 Swing Check Valve, 20 in, Flanged, 150 lb, Cast Steel Body
CBPN: 221699
MPN:147XU-20
Price:
$41336.92 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
CRANE® Swing Check Valve, Series: L147, 20 in Nominal Size, Flanged, 285 psi, 150 lb, -20 to 100 deg F, 38.50 in Inlet to Outlet Length, 26.50 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim
CRANE® swing check valves prevent reversal of flow through pipe lines. Most CRANE® swing check valves can be installed in horizontal or vertical, upward flow, piping. They offer low resistance to flow and are particularly suited to low velocity service.
Alternate trims are available. Please contact us for information.
Specifications
Brand: CRANE®
Weight: 2304 lbs
Nominal Size: 20 in
End Style: ANSI 150 Flange
Pressure Class: 150 lb
Body Material: Cast Steel
Inlet to Outlet Length: 38.50 in
Manufacturer Name: Crane ChemPharma Energy
Series: 147
Top to Inlet Center: 26.50 in
Trim Material: 410 Stainless Steel
Domestic/Import: Import
Item Features
- Seat ring is seal welded to eliminate leak path
