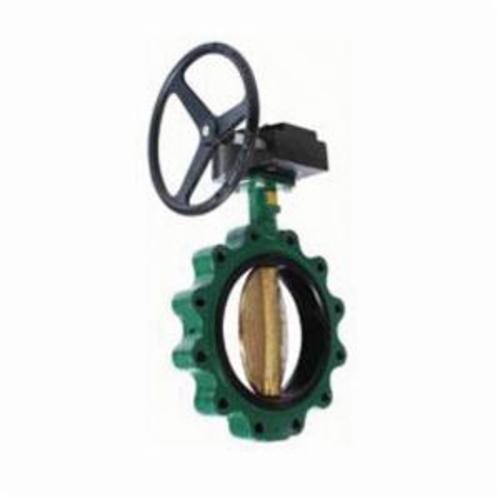

Crane Centerline 06-CV061355 200 Resilient Seated Lug Butterfly Valve, 6" Nominal, 200 lb, Ductile Iron Body, Al-Bronze Disc, EPDM Seat, PTFE Bushing, Gear Operator
CBPN: 166521
MPN:06CV061355
DESCRIPTION
CRANE® Center Line® Butterfly Valve, Resilient Seated, Series: 200, 6 in Nominal, 200 lb, -30 to 275 deg F, Gear Actuator, 2-3/8 in Inlet to Outlet Length, 8-7/8 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem)/316 Stainless Steel (Taper Pin) Stem & Pin Material, PTFE, Epoxy Powder Coated
Center Line® has been a market leader in quarter-turn valves for more than 40 years, and we have earned a reputation as a supplier of superior valves at competitive prices. Our goal is to exceed industry requirements and customer expectations. We are committed to offering products that meet a wide range of applications and requirements. We continually improve our product line by introducing new products and enhancing existing designs, providing our customers with the best products on the market. Our complete line of resilient seated butterfly valves provides you with the reliability you need, backed by the assurance that comes with using valves designed and produced in company-owned manufacturing facilities.
Crane Centerline 06-CV061355 200 Resilient Seated Lug Butterfly Valve, 6" Nominal, 200 lb, Ductile Iron Body, Al-Bronze Disc, EPDM Seat, PTFE Bushing, Gear Operator
CBPN: 166521
MPN:06CV061355
DESCRIPTION
CRANE® Center Line® Butterfly Valve, Resilient Seated, Series: 200, 6 in Nominal, 200 lb, -30 to 275 deg F, Gear Actuator, 2-3/8 in Inlet to Outlet Length, 8-7/8 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem)/316 Stainless Steel (Taper Pin) Stem & Pin Material, PTFE, Epoxy Powder Coated
Center Line® has been a market leader in quarter-turn valves for more than 40 years, and we have earned a reputation as a supplier of superior valves at competitive prices. Our goal is to exceed industry requirements and customer expectations. We are committed to offering products that meet a wide range of applications and requirements. We continually improve our product line by introducing new products and enhancing existing designs, providing our customers with the best products on the market. Our complete line of resilient seated butterfly valves provides you with the reliability you need, backed by the assurance that comes with using valves designed and produced in company-owned manufacturing facilities.
Specifications
Item Features
- DES(double Dead end service) lug style
- Operators mounted perpendicular to pipe
- Vacuum service rating - Zero leakage at 24 in of mercury
- Suitable for both gaseous and liquid service
- Positive shut-off bi-directionally
- Direct mount automation
- Wafer body feature 4 alignment holes
- Ideal for on-off or throttling service
- Commercial cleaning available for oxygen level 2
- Type approval certification from ABS and USCG Category a for marine application
- PTFE bushing
