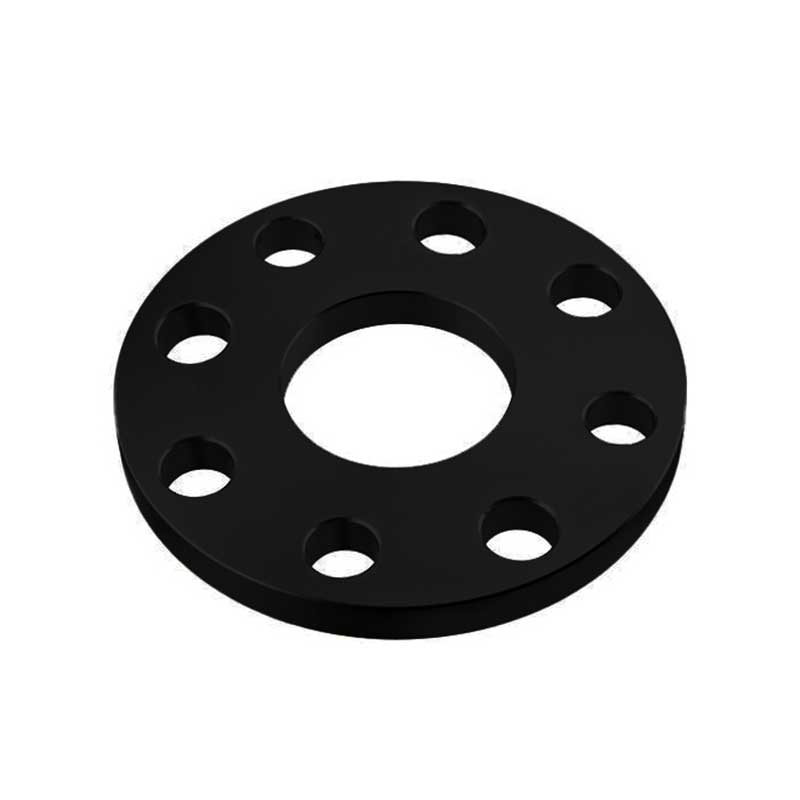

Flat Face Slip-On Flange, 6 in Nominal, Forged Carbon Steel, 300 lb, Import
CBPN: 35715
MPN:P514963_1N
Price:
$82.65 / EA
DESCRIPTION
Slip-On Flange, Flat Face, 6 in Nominal, 6.72 in ID, 1.38 in Thickness, 10.62 in Diameter Bolt Circle, 12 Bolt Holes, 7/8 in Bolt Hole, 12-1/2 in OD, 740 psig Pressure, 300 lb Pressure Class, -20 to 100 deg F, 8.12 in Diameter Hub, 2 in Length Through Hub, Forged Carbon Steel, Import
Flat Face Slip-On Flange, 6 in Nominal, Forged Carbon Steel, 300 lb, Import
CBPN: 35715
MPN:P514963_1N
Price:
$82.65 / EA
DESCRIPTION
Slip-On Flange, Flat Face, 6 in Nominal, 6.72 in ID, 1.38 in Thickness, 10.62 in Diameter Bolt Circle, 12 Bolt Holes, 7/8 in Bolt Hole, 12-1/2 in OD, 740 psig Pressure, 300 lb Pressure Class, -20 to 100 deg F, 8.12 in Diameter Hub, 2 in Length Through Hub, Forged Carbon Steel, Import
Specifications
Brand: Cooney Approved
Weight: 39 lbs
Nominal Size: 6 in
Material: Forged Carbon Steel
Pressure Class: 300 lb
Bolt Circle Diameter: 10.62 in
Bolt Hole Size: 7/8 in
Hub Diameter: 8.12 in
Inside Diameter: 6.72 in
Length Through Hub: 2 in
Manufacturer Name: Cooney Approved
Number of Bolt Holes: 12
Outside Diameter: 12-1/2 in
Pressure Rating: 740 psig
Temperature Rating: -20 to 100 deg F
Thickness: 1.38 in
Type: Flat Face
Domestic/Import: Import
