Kunkle Model 6252 Safety Relief Valves
Filter
The Kunkle 6252 Safety Relief Valve is a heavy-duty, high-quality Cast Iron valve with an enclosed Steel spring and a Stainless Steel semi-nozzle, disc, and trim. These valves are suitable for a diverse array of steam, air, or gas equipment, including steam boilers, generators, pressure reducing stations, air/gas compressors, and pressure vessels such as tanks, receivers, intercoolers, oil/gas separators and lines.

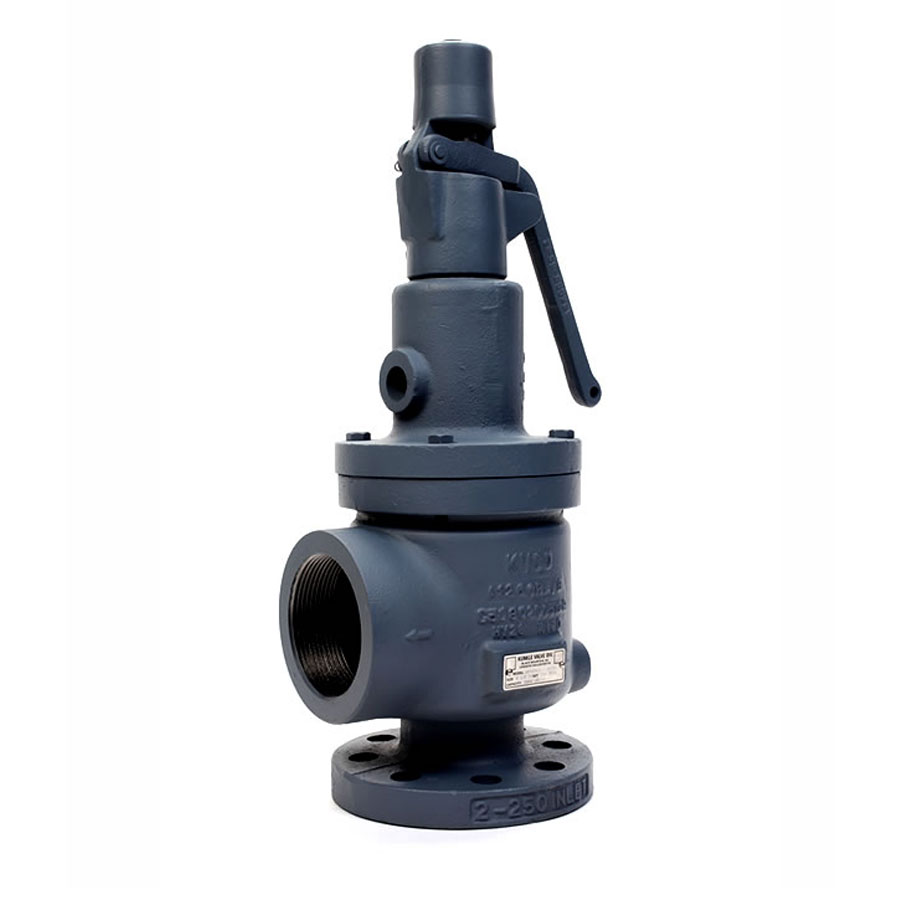

Cooney Brothers is proud to be an authorized distributor of Kunkle Safety Relief Valves. We offer our customers a wide variety of Model 6252 Safety Relief Valves, available from 1-½” x 2-½” to 6” x 8” in nominal size. They offer ANSI 250 Flanged x ANSI 125 Flanged, ANSI 250 Flanged x FNPT, or FNPT x FNPT (inlet x outlet) end connections to seamlessly integrate into various systems. Their set pressures range from 10 PSIG to 250 SPIG and their maximum temperatures range from -20°F to 406°F. The robust design of these Cast Iron Safety Relief Valves features a Stainless Steel trim with an EPDM O-Ring as well as a bolted bonnet for easy maintenance, lapped seats for optimal sealing and flatness, and dual control rings for precise adjustability and blowdown control. Their heavy-duty lift lever assembly ensures smooth operation with factory-sealed adjustments to prevent tampering or disassembly.

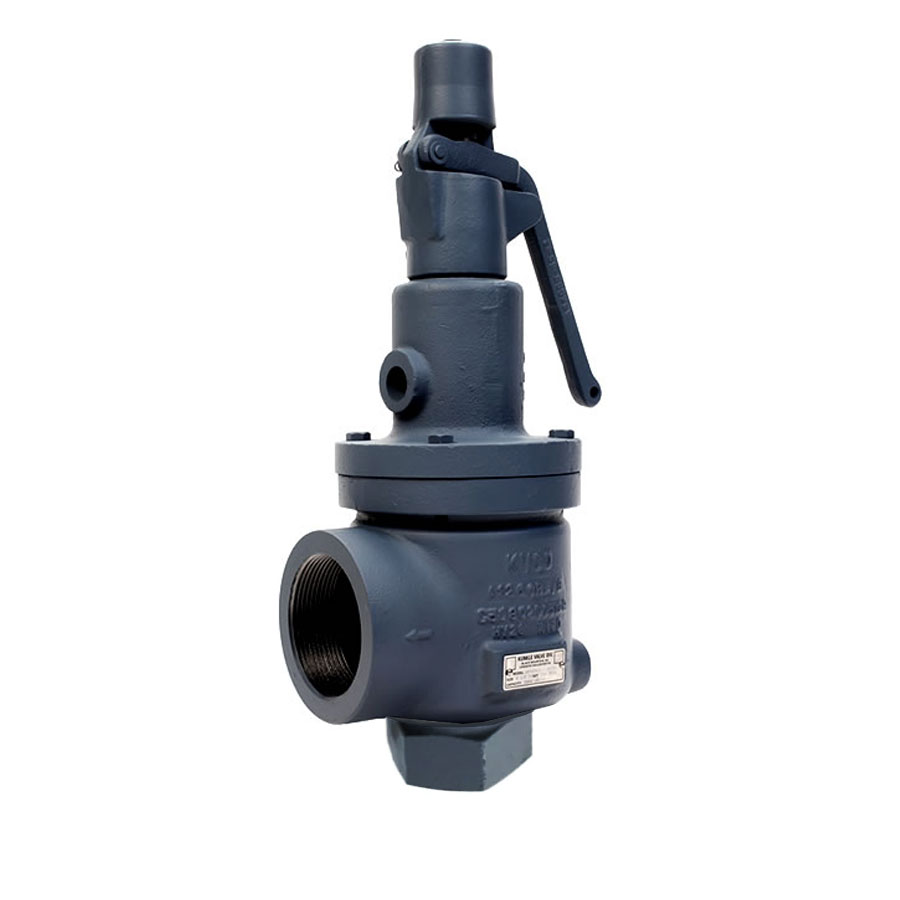

Following the model number, there are three letters in the name of every 6252 Safety Relief Valve. The first letter (A, F, and K) represents the three available connection types; FNPT, flanged or combination ends. The second letter (J, K, L, M, N P, Q, and R) represents the orifice. The third letter (G, H, J, K, M, and P) represents the inlet size. By inlet size, this product line includes:
- Kunkle 6252AJG Safety Relief Valves, Kunkle 6252FJG Safety Relief Valves, and Kunkle 6252FKHG Safety Relief Valves (1-½” inlet size)
- Kunkle 6252AKH Safety Relief Valves and Kunkle 6252FKH Safety Relief Valves (2” inlet size)
- Kunkle 6252ALJ Safety Relief Valves, Kunkle 6252FKJ Safety Relief Valves, and 6252FLJ Safety Relief Valves (2-½” inlet size)
- Kunkle 6252AMK Safety Relief Valves, Kunkle 6252FLK Safety Relief Valves, and Kunkle 6252FMK Safety Relief Valves (3” inlet size)
- Kunkle 6252FMM Safety Relief Valves, Kunkle 6252KNM Safety Relief Valves, and Kunkle 6252KPM Safety Relief Valves (4” inlet size)
- Kunkle 6252KQP Safety Relief Valves (6” inlet size)
Model 6252 Safety Valves are designed for ASME Section IV Steam and Section VIII & XIII, Air, Steam, & Gas services. Rigorous testing and inspection ensure that these valves have accurate pressure settings and minimal leakage.
