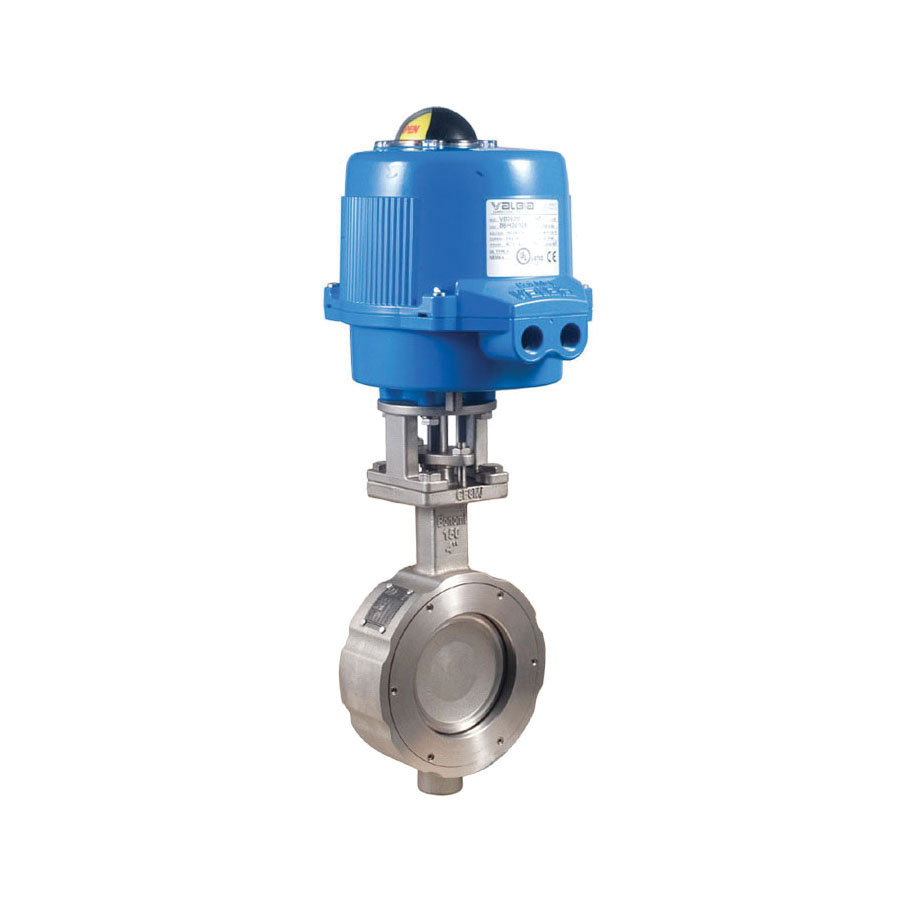

Bonomi ME9300-021-4 9300 2-Way High Performance Direct Mount Wafer Style Electric Actuated Butterfly Valve with Positioner, 4 in, 300 lb, 316 Stainless Steel Body, 12V AC/DC, RPTFE Softgoods, Import
CBPN: 230822
MPN:ME9300-021-4
DESCRIPTION
Bonomi North America Butterfly Valve Package, 2-Way High Performance Direct Mount Wafer Style, Series: 9300, 4 in Nominal, Flanged, 300 lb, Modulating Electric Actuator, 2.13 in Inlet to Outlet Length, 11.73 in Top to Inlet Center, 316 Stainless Steel Body, Stainless Steel Disc, 17-4PH Stainless Steel (Stem)/316 Stainless Steel (Pin) Stem & Pin Material, FKM, 6.93 in L x 7.76 in W x 20.39 in H, Import
Bonomi North America series ME9300 packages, feature carbon and stainless steel Class 300, double off-set, wafer style high performance butterfly valves in sizes 2 to 12 in. The carbon steel models have ASTM A216 WCB bodies and ASTM A351 CF8M discs. The stainless steel models come with ASTM A351 CF8M bodies and discs. These valves are standardly furnished with ISO 5211 mounting pad, and square stems for direct mounting. The ME9300 series also includes a rugged aluminum polyester powder coated metal housing NEMA 4 electric actuator, with standard features such as 2 extra limit switches, heater and thermostat, torque limiter, dual voltages, bubble type position indicator and a 75% duty cycle motor.
Bonomi ME9300-021-4 9300 2-Way High Performance Direct Mount Wafer Style Electric Actuated Butterfly Valve with Positioner, 4 in, 300 lb, 316 Stainless Steel Body, 12V AC/DC, RPTFE Softgoods, Import
CBPN: 230822
MPN:ME9300-021-4
DESCRIPTION
Bonomi North America Butterfly Valve Package, 2-Way High Performance Direct Mount Wafer Style, Series: 9300, 4 in Nominal, Flanged, 300 lb, Modulating Electric Actuator, 2.13 in Inlet to Outlet Length, 11.73 in Top to Inlet Center, 316 Stainless Steel Body, Stainless Steel Disc, 17-4PH Stainless Steel (Stem)/316 Stainless Steel (Pin) Stem & Pin Material, FKM, 6.93 in L x 7.76 in W x 20.39 in H, Import
Bonomi North America series ME9300 packages, feature carbon and stainless steel Class 300, double off-set, wafer style high performance butterfly valves in sizes 2 to 12 in. The carbon steel models have ASTM A216 WCB bodies and ASTM A351 CF8M discs. The stainless steel models come with ASTM A351 CF8M bodies and discs. These valves are standardly furnished with ISO 5211 mounting pad, and square stems for direct mounting. The ME9300 series also includes a rugged aluminum polyester powder coated metal housing NEMA 4 electric actuator, with standard features such as 2 extra limit switches, heater and thermostat, torque limiter, dual voltages, bubble type position indicator and a 75% duty cycle motor.
Specifications
Item Features
- ISO 5211 direct mount
- Compact design, easy access to packing
- Replaceable seat design
- Multiple V-ring stem packing
- Reliable and consistent torques
- Carbon filled PTFE seat
- FKM O-ring
- Valbia 12 VDC positioning metal electric actuator
