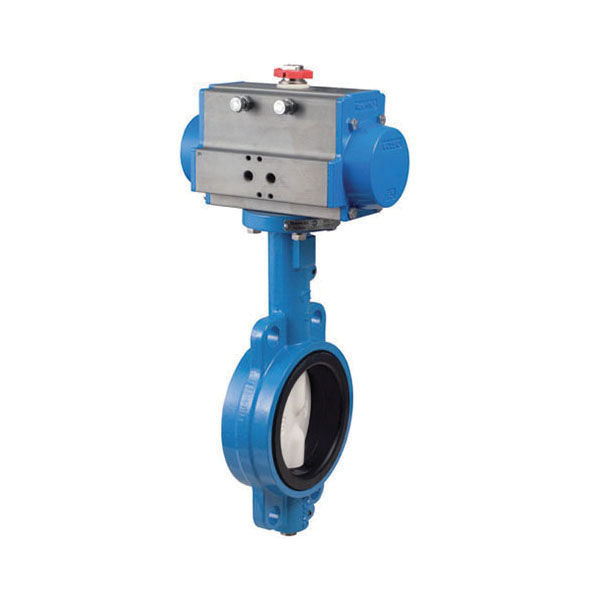

Bonomi North America Butterfly Valve Package, 2-Way Rubber Lined Direct Mount Wafer Style, Series: N500N, 4 in Nominal, Flanged, -30 to 250 deg F, Media: Water, Double Acting Pneumatic Actuator, 2.05 in Inlet to Outlet Length, 13.03 in Top to Inlet Center, Ductile Iron Body, Cast Iron Disc, Carbon Steel (Locating Pin) Stem & Pin Material, EPDM, Epoxy Powder Coated, 8.27 in L x 17.52 in H, Import

Bonomi North America series DAN500N feature the N500N, direct mount cast iron wafer style, epoxy coated, resilient seat butterfly valves in sizes 1-1/2 to 12 in, with EPDM seat are NSF/ANSI 61/372 certified. The N500N offers a nylon coated disc, stainless steel disc. This series shall offer a dual stem design and ISO 5211/DIN 3337 direct mounting for high cycle automation capabilities. In addition, the N500N series features a phenolic-backed cartridge seat design which offers a 250 CWP maximum pressure rating, and conforms to ANSI B16.1. The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
