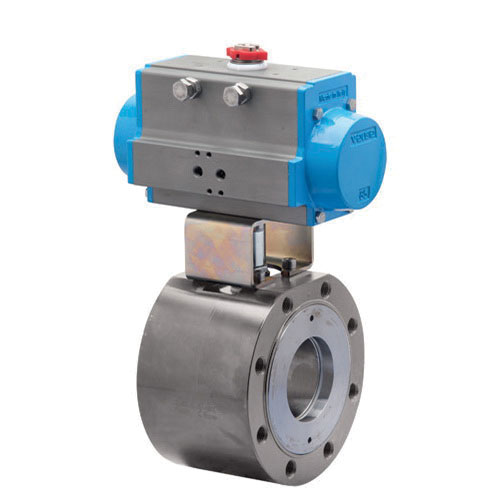

Bonomi North America Ball Valve Package, 2-Way Wafer Style, Series: 720288, 2 in Nominal, Flanged, 300 lb, -4 to 400 deg F, Full Port, 1.97 in Orifice, Double Acting Pneumatic Actuator, 316 Stainless Steel Ball, 3.23 in Inlet to Outlet Length, 10.9 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, FKM/PTFE/RPTFE, 9.47 in L x 4.17 in W x 14.13 in H, Import

The Bonomi 8P720288 series pneumatic packages feature the 720288 made from ASTM A351-CF8M stainless steel, short pattern, wafer full port, ANSI Class 300 flanged ball valve, in sizes 1/2 to 6 in. This space saving valve also meets ANSI 16.34, ANSI 16.5, NACE MR 0175/ISO 15156 and NACE MR 0103. It has RTFE seats, and a combination PTFE and FKM dual stem packing design. The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
