Bonomi 8P3100 Actuated Ball Valve

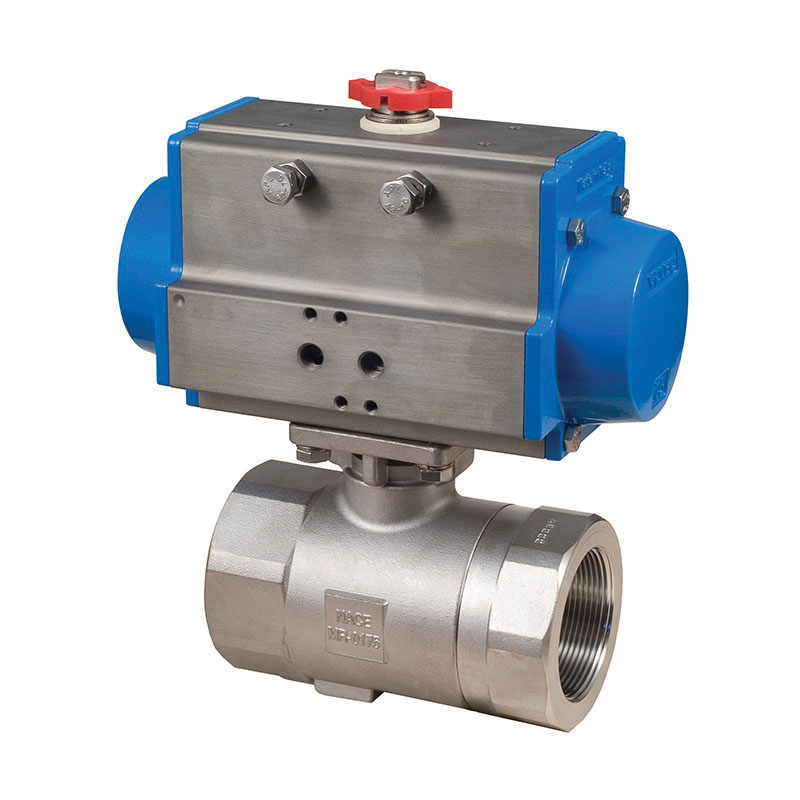

Bonomi 8P3100-1-1/2 2-Way Direct Mount Pneumatic Actuated Ball Valve, Double Acting, 1-1/2 in, FNPT, 316 Stainless Steel Body, Full Port, FKM/PTFE Softgoods, Import

CBPN: 228432

MPN:8P3100-1-1/2

Price:
$779.18 / EA

DESCRIPTION

Bonomi North America Ball Valve Package, 2-Way Direct Mount, Series: 3100, 1-1/2 in Nominal, FNPT, 3000 psi, -20 to 185 deg F, Full Port, 1.37 in Orifice, Double Acting Pneumatic Actuator, Stainless Steel Ball, 4.76 in Inlet to Outlet Length, 9.39 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/Delrin/Vinyl Trim, FKM/PTFE, 8.27 in L x 3.72 in W x 8.12 in H, Import

The Bonomi 8P3100 series pneumatic actuated package features a 3000 psi investment cast ASTM A351-CF8M stainless steel ball valve, with an ISO 5211 direct mount pad and square stem. The valve also features Delrin seats and a grounded ball and stem. The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.

Bonomi 8P3100-1-1/2 2-Way Direct Mount Pneumatic Actuated Ball Valve, Double Acting, 1-1/2 in, FNPT, 316 Stainless Steel Body, Full Port, FKM/PTFE Softgoods, Import

CBPN: 228432

MPN:8P3100-1-1/2

Price:
$779.18 / EA

Bonomi Valve logo

DESCRIPTION

Bonomi North America Ball Valve Package, 2-Way Direct Mount, Series: 3100, 1-1/2 in Nominal, FNPT, 3000 psi, -20 to 185 deg F, Full Port, 1.37 in Orifice, Double Acting Pneumatic Actuator, Stainless Steel Ball, 4.76 in Inlet to Outlet Length, 9.39 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/Delrin/Vinyl Trim, FKM/PTFE, 8.27 in L x 3.72 in W x 8.12 in H, Import

The Bonomi 8P3100 series pneumatic actuated package features a 3000 psi investment cast ASTM A351-CF8M stainless steel ball valve, with an ISO 5211 direct mount pad and square stem. The valve also features Delrin seats and a grounded ball and stem. The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.

Specifications

BrandBonomi North America
Weight9.5 lbs
Nominal Size1-1/2 in
End StyleFNPT
Body Material316 Stainless Steel
Actuator TypeDouble Acting Pneumatic
Ball MaterialStainless Steel
Dimensions8.27 in L x 3.72 in W x 8.12 in H
Inlet to Outlet Length4.76 in
Manufacturer NameBonomi North America
Orifice Size1.37 in
Port TypeFull
Pressure Rating3000 psi
Series3100
Softgoods MaterialFKM/PTFE
Temperature Rating-20 to 185 deg F
Top to Inlet Center9.39 in
Trim Material316 Stainless Steel/Delrin/Vinyl
Type2-Way Direct Mount
Warranty1 Year
Domestic/ImportImport
Country of OriginIT
Standards and ApprovalsASTM A351 Grade CF8M Ball/Body

Item Features

  • Blow out proof stem, antistatic device
  • ISO 5211 mounting pad
  • Vinyl handle sleeve
  • Delrin ball seat
  • 316 stainless steel
  • PTFE body seal/thrust washer/stem packing
  • FKM O-ring
