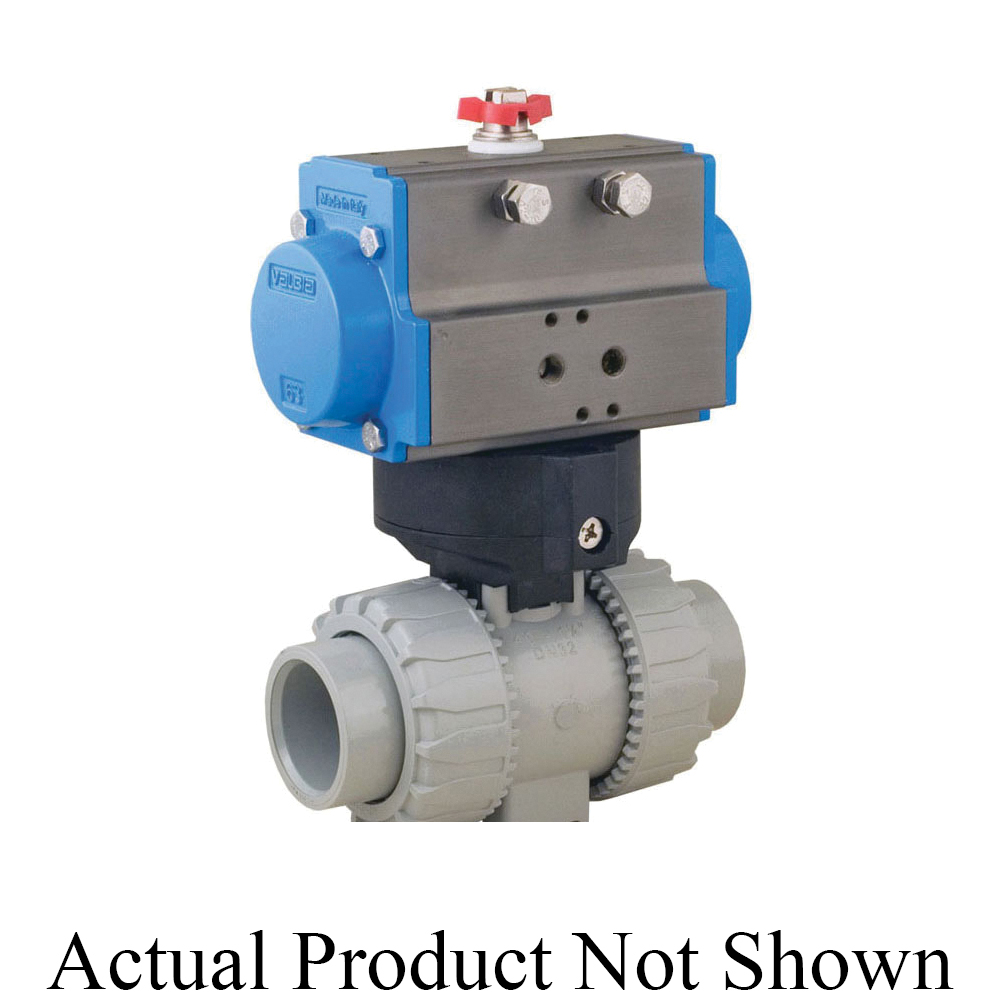

Bonomi North America Ball Valve Package, 2-Way Direct Mount, Series: CPVC-BV2, 1 in Nominal, NPT x Socket Weld, 232 psi, 73 deg F, Full Port, Double Acting Pneumatic Actuator, CPVC Ball, 5.59 in Inlet to Outlet Length, 6.9 in Top to Inlet Center, CPVC Body, CPVC/EPDM/PTFE Trim, EPDM, 5.55 in L x 2.79 in W x 8.44 in H, Import

The valve body, stem, ball and unions shall be made of PVC compound which shall meet classification 12454 of ASTM D 1784 or the valve body, stem, ball and unions shall be made of CPVC compound and shall meet classification 23447 of ASTM D 1784. The ball seats shall be made of PTFE and the O-ring seals shall be made of EPDM. The PVC IPS/Socket connectors shall conform to the dimensional standards ASTM D2466 and ASTM D2467 and the CPVC shall conform to the dimensional standard ASTM F439. The NPT PVC connectors shall conform to the dimensional standards of ASTM D2464, ASTM F1498 and ANSI B1.20.1 thread depths. The NPT CPVC shall conform to ASTM F437, ASTM F1498 and ANSI B1.20.1 thread depths. The rack and pinion style pneumatic actuator body shall be made from hard anodized extruded aluminum, and shall incorporate adjustable side 0 to 90 adjustable limit stops that do not internally enter the cylinder bore. The actuator temperature range shall be -4 to 302 deg F.
