Bonomi North America Instrumentation Ball Valve Package, 2-Way 3-Piece Direct Mount, Series: 1300, 1/2 in Nominal, Compression, 2000 psi, -4 to 450 deg F, Standard Port, 0.37 in Orifice, Pneumatic Spring Return Actuator, 316 Stainless Steel Ball, 4.02 in Inlet to Outlet Length, 5.59 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/1600 TFM Trim, FKM/PTFE, 5.55 in L x 2.8 in W x 6.44 in H, Import

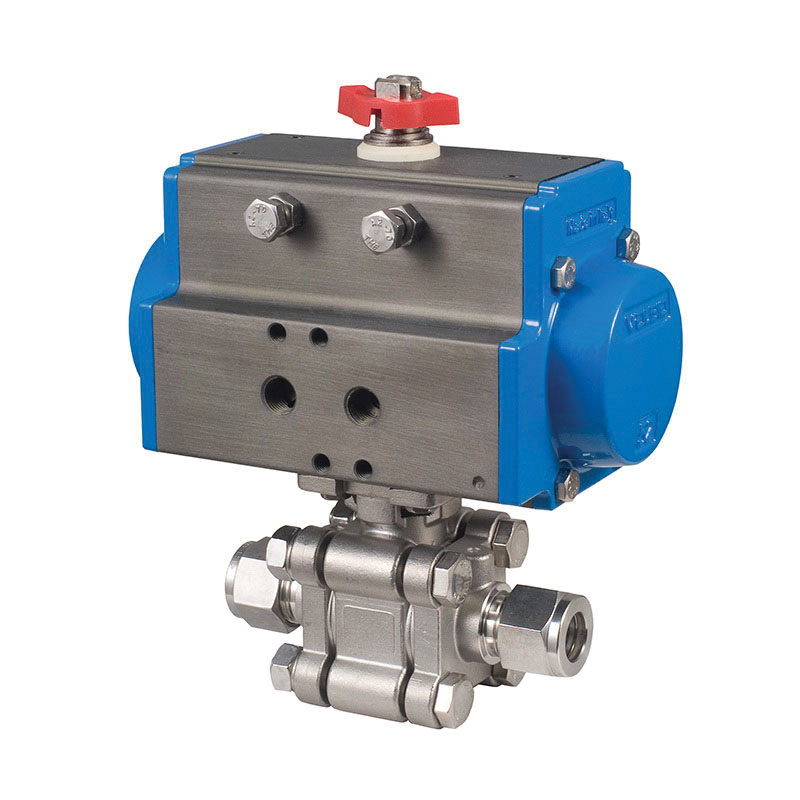

The Bonomi 8P1302 series pneumatic actuated package features a stainless steel, 2000 psi 3-piece, ISO 5211 direct mount ball valve with compression ends. The valve also has TFM1600 seats, and a multiple stem packing design for high cycle applications. The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
