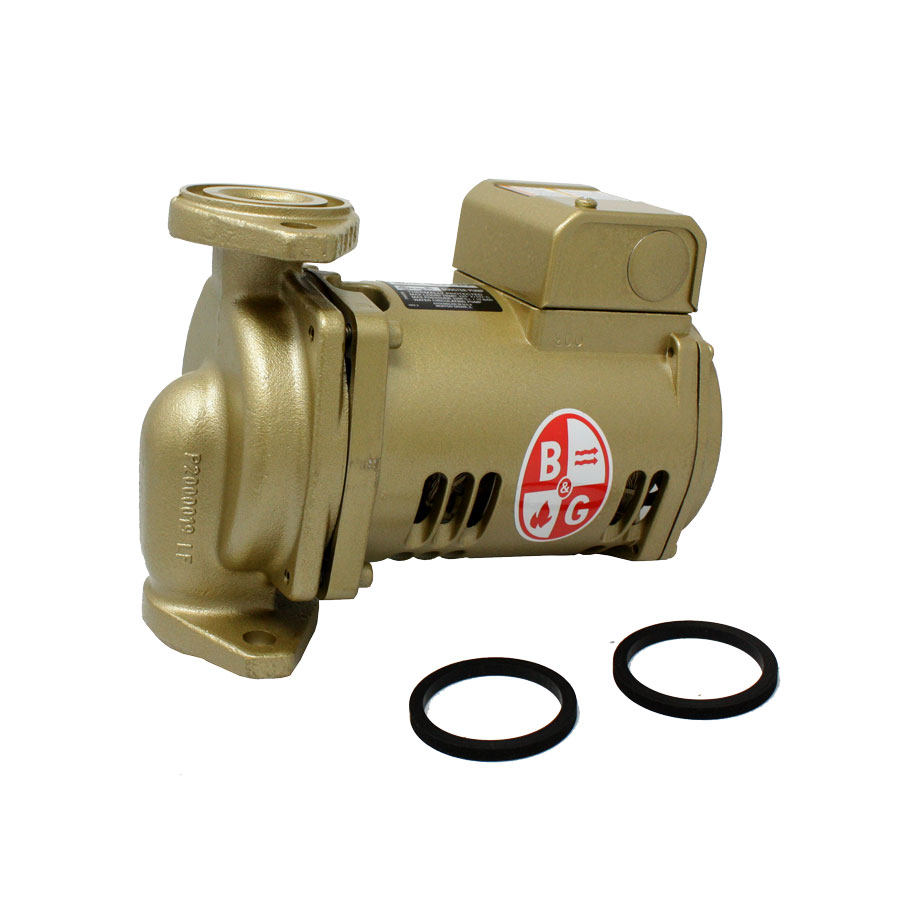

Bell & Gossett PL™ 1BL003LF PL Series Maintenance-Free Booster Pump, 115 VAC, 1 ph
CBPN: 137174
UPC:683328223070
MPN:1BL003LF
Price:
$1016.59 / EA
DESCRIPTION
Bell & Gossett PL™ Booster Pump, Maintenance-Free, Series: PL Series, 1/6 hp Power, 115 VAC, 2.1 A, 60 Hz Frequency, 1 ph ph, 150 psi Maximum, 3300 rpm Motor, Glass-Filled Noryl® Impeller, In-Line Mounting, 225 deg F, Ball Bearing, 8-5/8 in L x 6-3/8 in H Dimensions
The series PL™ close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These in-line permanently lubricated pumps are available in cast iron or lead-free bronze body construction.
Bell & Gossett PL™ 1BL003LF PL Series Maintenance-Free Booster Pump, 115 VAC, 1 ph
CBPN: 137174
MPN:1BL003LF
UPC:683328223070
Price:
$1016.59 / EA
DESCRIPTION
Bell & Gossett PL™ Booster Pump, Maintenance-Free, Series: PL Series, 1/6 hp Power, 115 VAC, 2.1 A, 60 Hz Frequency, 1 ph ph, 150 psi Maximum, 3300 rpm Motor, Glass-Filled Noryl® Impeller, In-Line Mounting, 225 deg F, Ball Bearing, 8-5/8 in L x 6-3/8 in H Dimensions
The series PL™ close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These in-line permanently lubricated pumps are available in cast iron or lead-free bronze body construction.
Specifications
Brand: Bell & Gossett
Weight: 15 lbs
Bearing Type: Ball
Impeller Type: Glass-Filled Noryl®
Temperature Rating: 225 deg F
Voltage Rating: 115 VAC
Phase: 1
Amperage Rating: 2.1 A
Dimensions: 8-5/8 in L x 6-3/8 in H
Frequency Rating: 60 Hz
Manufacturer Name: Xylem
Maximum Pressure: 150 psi
Motor Speed: 3300 rpm
Mounting Type: In-Line
Power Rating: 1/6 hp
Series: PL Series
Type: Maintenance-Free
Standards and Approvals: cUL/UL Listed | SA Registered
Item Features
- Permanently lubricated
- Bronze body
- PL boosters equipped with a drip-proof motor are recommended for indoor use only
- Bell & Gossett powerful, dry-motor design delivers exceptional performance
- 25 percent more efficient than competition
- Precision-machined and balanced alloy steel rotor for superior performance
- Solid stiff-shaft design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses
- XL-11™ Precision-crafted bearing system
- Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
- Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
- Double sided stainless steel neck ring for optimum efficiency
- Contains less than 0.25 percent lead content by weight on wetted surfaces
- 3/4, 1, 1-1/4 and 1-1/2 in NPT flange
- Model PL-36B
