Bell & Gossett 110192LF Pressure Reducing Valve, 1/2 in, FNPT, 10 to 25 psig, 5.5 to 6 gpm, Brass Body
CBPN: 6844
UPC:683328101927
MPN:110192LF
DESCRIPTION
Bell & Gossett Pressure Reducing Valve, 1/2 in Nominal, NPT, 10 to 25 psig, 225 deg F, 5.5 to 6 gpm, Brass Body, Brass Trim, 3-1/16 in W x 4-7/8 in H

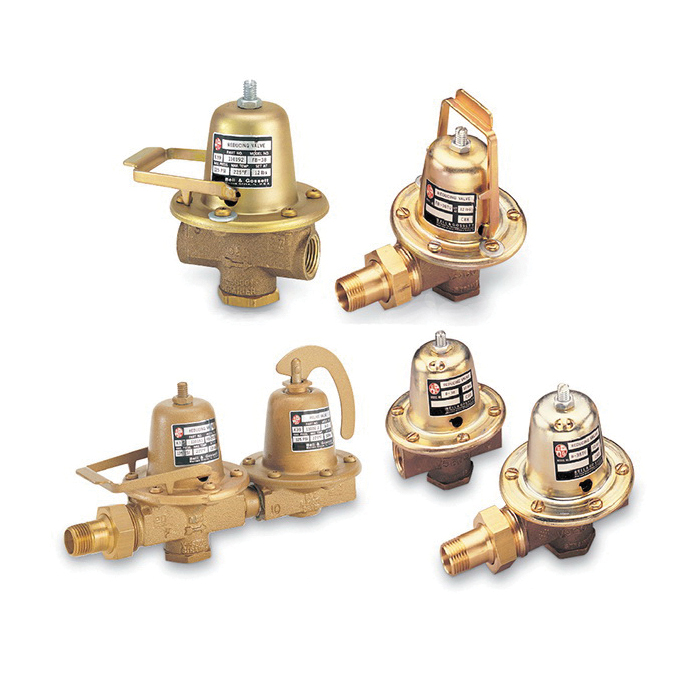

Reducing valves fill the system to a preset pressure for optimum performance. Combination Dual Unit Valves include pressure reducing valve and relief valve. B and G reducing valves protect heating and plumbing systems against excessive line pressures. They are factory set at specified limits although adjustment is easily made. Equipped with built-in-strainer and low inlet pressure check valve. Tail piece for union models is combination - 1/2 in cooper sweat and 1/2 in male NPT.
Bell & Gossett 110192LF Pressure Reducing Valve, 1/2 in, FNPT, 10 to 25 psig, 5.5 to 6 gpm, Brass Body
CBPN: 6844
MPN:110192LF
UPC:683328101927
DESCRIPTION
Bell & Gossett Pressure Reducing Valve, 1/2 in Nominal, NPT, 10 to 25 psig, 225 deg F, 5.5 to 6 gpm, Brass Body, Brass Trim, 3-1/16 in W x 4-7/8 in H
Reducing valves fill the system to a preset pressure for optimum performance. Combination Dual Unit Valves include pressure reducing valve and relief valve. B and G reducing valves protect heating and plumbing systems against excessive line pressures. They are factory set at specified limits although adjustment is easily made. Equipped with built-in-strainer and low inlet pressure check valve. Tail piece for union models is combination - 1/2 in cooper sweat and 1/2 in male NPT.
Specifications
Item Features
- Fast fill feature reduces start-up time and labor
- Low inlet pressure check valve help prevent loss of system pressure if the supply water drops below system pressure
- Convenient cleanable strainer is designed to prevent dirt and sediment from entering the system
- Union connection available with 1/2 in male NPT thread and 1/2 in female sweat tail-piece for fast, flexible system connection
- Brass body construction is highly resistant to corrosion-ideal for water systems
- Lead-free brass body/construction is ideal for potable water systems
- Contains less than 0.25% lead by weight on wetted surfaces
- 12 psig factory setting and 125 psig inlet pressure
- Construction: Wetted parts- cast lead free brass body, EPT with special insert diaphragm, EPDM check valve, lead free brass seat, lead free brass with EPDM insert stem, lead free brass valve plate, strainer and strainer nut, Non-wetted parts- steel
- Maximum flow 5-1/2 to 6 gpm at 125 psig inlet pressure
