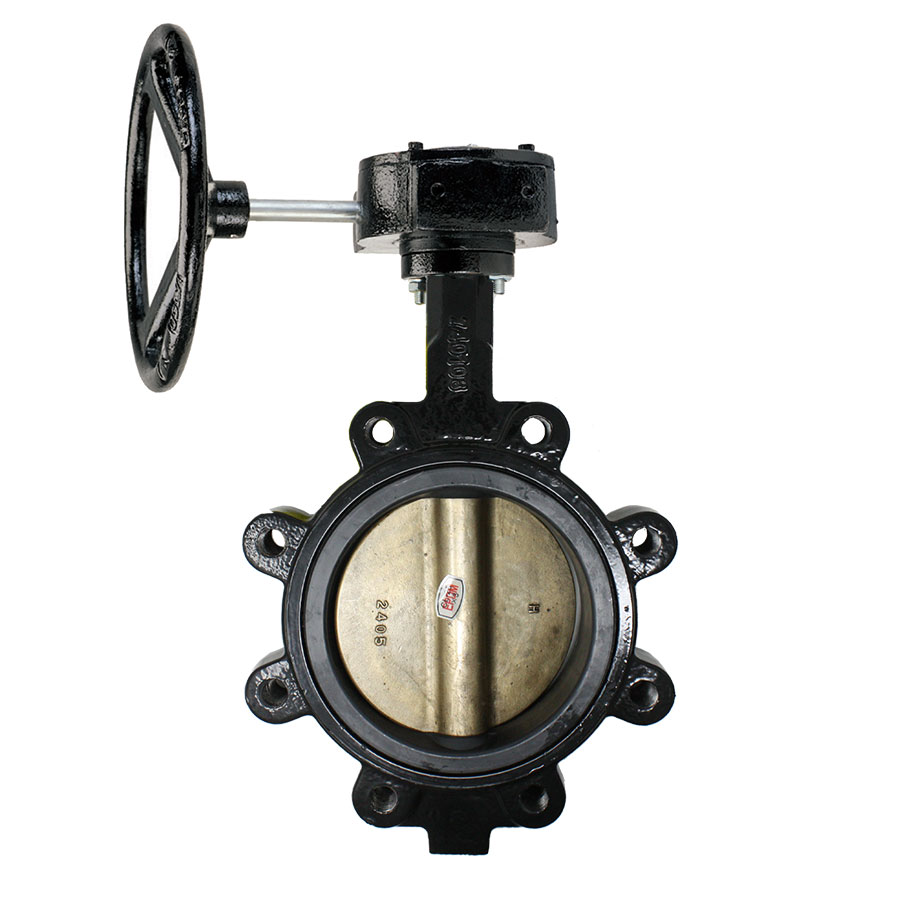

Apollo™ LD-141-18-B-E-1-2-A LD141 Resilient Seated Butterfly Valve, 18 in Nominal, Lug Style, Ductile Iron Body, Aluminum Bronze Disc, EPDM Seat, Gear Operator
CBPN: 209900
UPC:670750772023
MPN:LD14118BE12A
Apollo™ LD14118BE12A has been discontinued by the manufacturer.
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 18 in Nominal, -20 to 250 deg F Intermittent/225 deg F Continuous, Gear Actuator, 16.63 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, EPDM
Apollo International™ LD141 series ductile iron butterfly valves are ideal for use in industrial and commercial/HVAC/mechanical applications. The LD141 series is a companion lug style.
Apollo™ LD-141-18-B-E-1-2-A LD141 Resilient Seated Butterfly Valve, 18 in Nominal, Lug Style, Ductile Iron Body, Aluminum Bronze Disc, EPDM Seat, Gear Operator
CBPN: 209900
MPN:LD14118BE12A
UPC:670750772023
Apollo™ LD14118BE12A has been discontinued by the manufacturer.
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 18 in Nominal, -20 to 250 deg F Intermittent/225 deg F Continuous, Gear Actuator, 16.63 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, EPDM
Apollo International™ LD141 series ductile iron butterfly valves are ideal for use in industrial and commercial/HVAC/mechanical applications. The LD141 series is a companion lug style.
Specifications
Brand: Apollo™
Weight: 303 lbs
Nominal Size: 18 in
Type: Resilient Seated Lug
Body Material: Ductile Iron
Disc Material: Aluminum Bronze
Seat Material: EPDM
Actuator Type: Gear Operator
End Style: Lug
Manufacturer Name: Apollo Conbraco
Pressure Rating: 150 psi
Series: LD141
Temperature Rating: -20 to 250 deg F Intermittent/225 deg F Continuous
Top to Inlet Center: 16.63 in
Application: Industrial, Commercial, HVAC and Mechanical Applications
Domestic/Import: Import
Standards and Approvals: ANSI Specified | API 609 | ASTM A536 Body | AWWA C-504 | CRN OC/2102CL | Federal Public Law 111-380 | ANSI 3rd Party Approved | MSS SP67-2002a | NSF/ANSI 372 Lead-Free | NSF/ANSI 61 | PROP65: Cancer and Reproductive Harm
Item Features
- LD141 series Suitable for end of line service (bidirectional dead end service) to rated pressure (2 to 24 in)
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Buna-N stem seal and glass reinforced epoxy resin bushing
- Black EPDM seat
- The face-to-face dimensions were designed to comply with MSS SP-67 and API 609
- Through shaft assures positive disc positioning and dependable performance
- Weather seal shaft equipped with weather seal to prevent external media from entering the shaft bore
- Square shaft-to-disc connection provides a robust shaft-to-disc connection without pins or bolts
- Three bushings supports shaft at three locations to enhance shaft alignment and absorb actuator side thrusts
- Factory tested to 110% of full rated pressure in both directions before shipping
- Profiled disc design precision machined disc edge creates Bubble tight shut-off, primary seal
- Shaft seal the shaft Dia is greater than the Dia of the seat's shaft hole creating a robust shaft seal
- All valves are 100% factory tested before shipping
