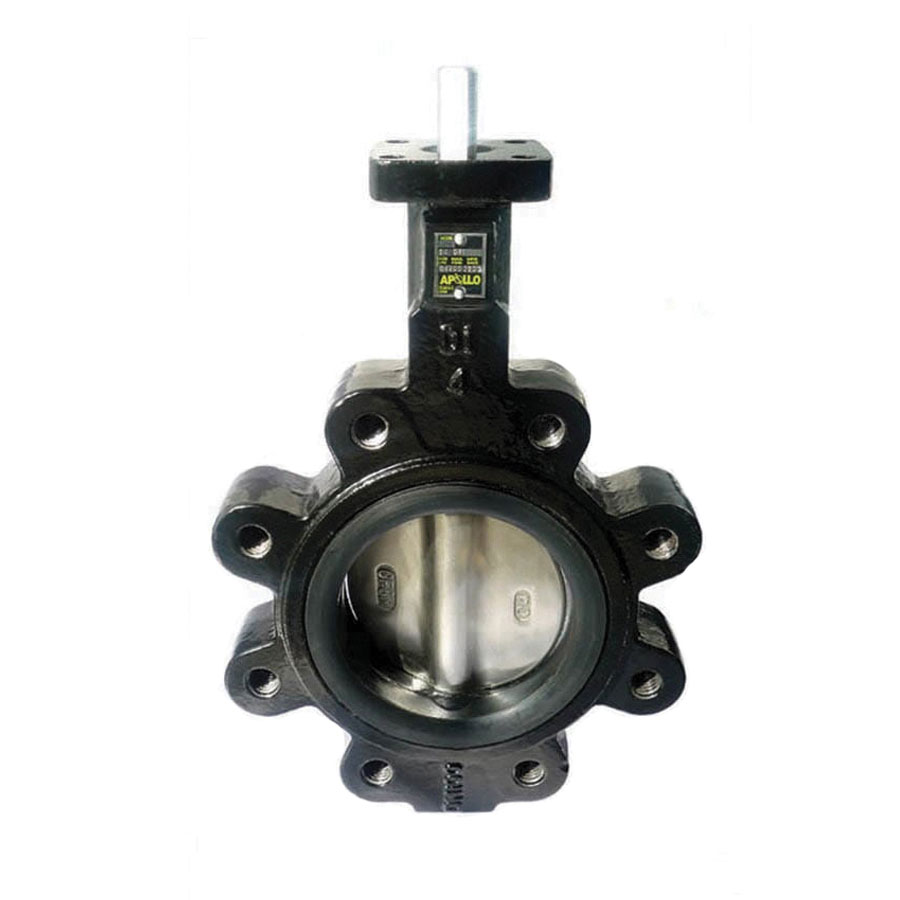

Apollo™ LD-141-10-S-E-1-2-A LD141 Resilient Seated Butterfly Valve, 10 in Nominal, Lug Style, Ductile Iron Body, Stainless Disc, EPDM Seat, Gear Operator
CBPN: 217275
UPC:670750940026
MPN:LD14110SE12A
Price:
$1752.33 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 10 in Nominal, -20 to 250 deg F Intermittent/225 deg F Continuous, Gear Actuator, 11-1/2 in Top to Inlet Center, Ductile Iron Body, 316 Stainless Steel Disc, EPDM
Apollo International™ LD141 series ductile iron butterfly valves are ideal for use in industrial and commercial/HVAC/mechanical applications. The LD141 series is a companion lug style.
Apollo™ LD-141-10-S-E-1-2-A LD141 Resilient Seated Butterfly Valve, 10 in Nominal, Lug Style, Ductile Iron Body, Stainless Disc, EPDM Seat, Gear Operator
CBPN: 217275
MPN:LD14110SE12A
UPC:670750940026
Price:
$1752.33 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 10 in Nominal, -20 to 250 deg F Intermittent/225 deg F Continuous, Gear Actuator, 11-1/2 in Top to Inlet Center, Ductile Iron Body, 316 Stainless Steel Disc, EPDM
Apollo International™ LD141 series ductile iron butterfly valves are ideal for use in industrial and commercial/HVAC/mechanical applications. The LD141 series is a companion lug style.
Specifications
Brand: Apollo™
Weight: 94 lbs
Nominal Size: 10 in
Type: Resilient Seated Lug
Body Material: Ductile Iron
Disc Material: Stainless Steel
Seat Material: EPDM
Actuator Type: Gear Operator
End Style: Lug
Manufacturer Name: Apollo Conbraco
Pressure Rating: 200 psi
Series: LD141
Temperature Rating: -20 to 250 deg F Intermittent/225 deg F Continuous
Top to Inlet Center: 11-1/2 in
Application: Industrial, Commercial, HVAC and Mechanical Applications
Domestic/Import: Import
Standards and Approvals: ANSI Specified | API 609 | ASTM A536 Body | AWWA C-504 | ASTM CF8M | CRN OC/2102CL | Federal Public Law 111-380 | ANSI 3rd Party Approved | MSS SP67-2002a | NSF/ANSI 372 Lead-Free | NSF/ANSI 61 | PROP65: Cancer and Reproductive Harm
Item Features
- LD141 series Suitable for end of line service (bidirectional dead end service) to rated pressure (2 to 24 in)
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Buna-N stem seal and glass reinforced epoxy resin bushing
- Black EPDM seat
- The face-to-face dimensions were designed to comply with MSS SP-67 and API 609
- Through shaft assures positive disc positioning and dependable performance
- Weather seal shaft equipped with weather seal to prevent external media from entering the shaft bore
- Square shaft-to-disc connection provides a robust shaft-to-disc connection without pins or bolts
- Three bushings supports shaft at three locations to enhance shaft alignment and absorb actuator side thrusts
- Factory tested to 110% of full rated pressure in both directions before shipping
- Profiled disc design precision machined disc edge creates Bubble tight shut-off, primary seal
- Shaft seal the shaft Dia is greater than the Dia of the seat's shaft hole creating a robust shaft seal
- All valves are 100% factory tested before shipping
