Apollo 9A-100 Series Ball Valve

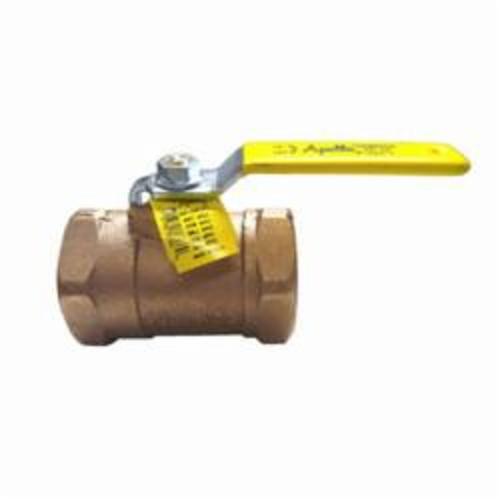

Apollo™ 9A10501 9A-100 9A-100 1-Piece Heavy Pattern Uni-Body Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body

CBPN:152247

UPC:670750787447

MPN:9A-105-01

Price:
$54.99 / EA
Prop 65:

DESCRIPTION

Apollo™ Ball Valve, 1-Piece Heavy Pattern Uni-Body, Series: 9A-100, 1 in Nominal, FNPT End Style, 600 psig CWP Pressure, Standard Port, Media: Fluid, Lever Operated Actuator, Chrome Plated Brass Ball, 3.28 in Inlet to Outlet Length, 2.02 in Top to Inlet Center, Bronze Body, Brass/RPTFE Trim, Domestic

Apollo™ 9A10501 9A-100 9A-100 1-Piece Heavy Pattern Uni-Body Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body

CBPN:152247

MPN:9A-105-01

UPC:670750787447

Price:
$54.99 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Ball Valve, 1-Piece Heavy Pattern Uni-Body, Series: 9A-100, 1 in Nominal, FNPT End Style, 600 psig CWP Pressure, Standard Port, Media: Fluid, Lever Operated Actuator, Chrome Plated Brass Ball, 3.28 in Inlet to Outlet Length, 2.02 in Top to Inlet Center, Bronze Body, Brass/RPTFE Trim, Domestic

Specifications

BrandApollo™
Weight1.73lbs
Nominal Size1 in
End StyleFNPT
Pressure Rating600 psi CWP
Body MaterialBronze
Port TypeStandard
Actuator TypeLever Operated
Ball MaterialChrome Plated Brass
Inlet to Outlet Length3.28 in
Manufacturer NameApollo Conbraco
MediaFluid
Series9A-100
Top to Inlet Center2.02 in
Trim MaterialBrass/RPTFE
TypeUni-Body Heavy Pattern
IncludesAdjustable Packing Gland
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM B584-C84400 Body | ASTM B16 Ball/Stem | MSS SP-110 | PROP65: Cancer and Reproductive Harm

Item Features

  • Compact design
  • Static grounding devices
  • Blow-out proof stem design
  • 150 psig saturated steam
  • Cold non-shock body rating
