Apollo 94ALF-A Series Ball Valve

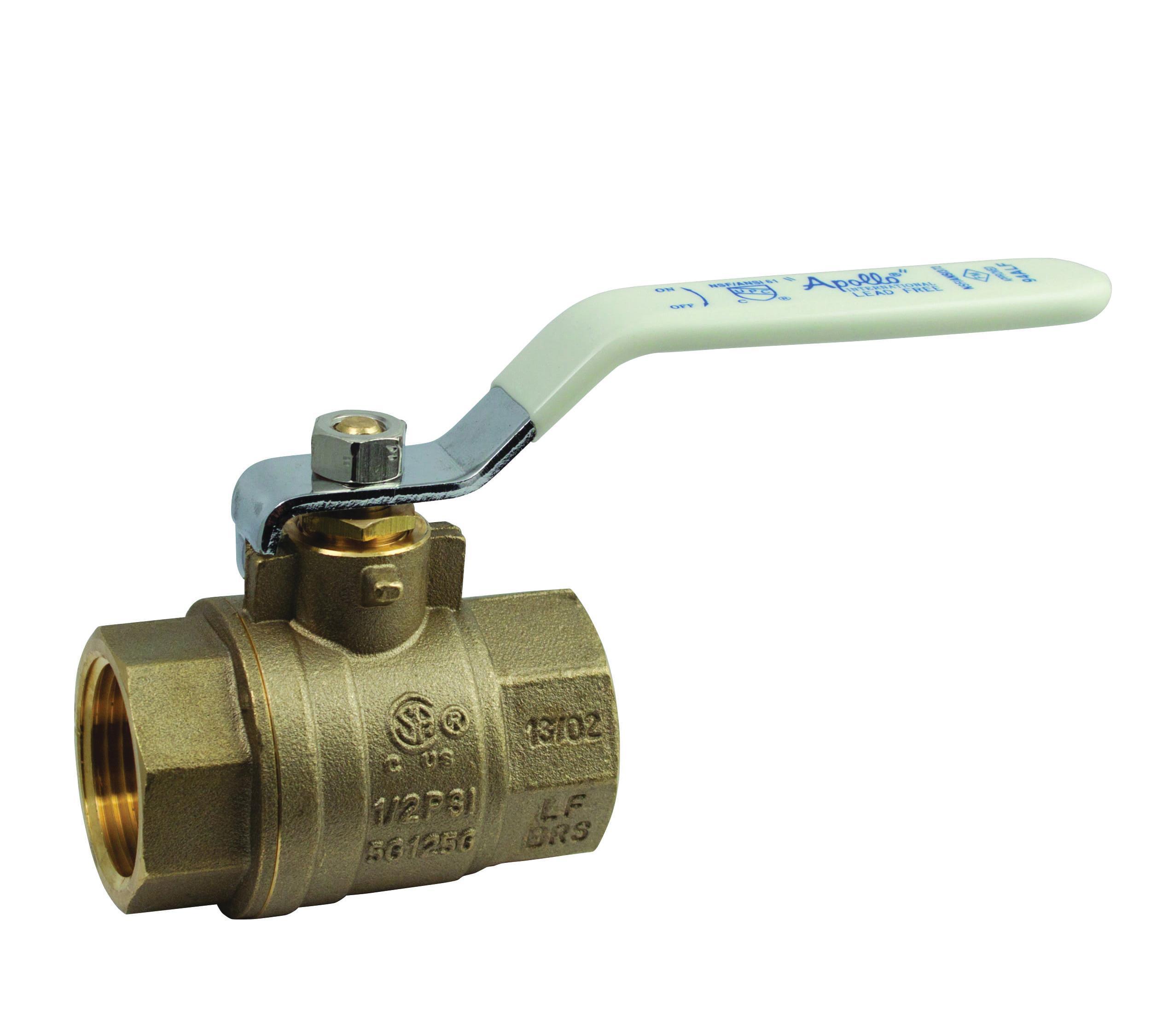

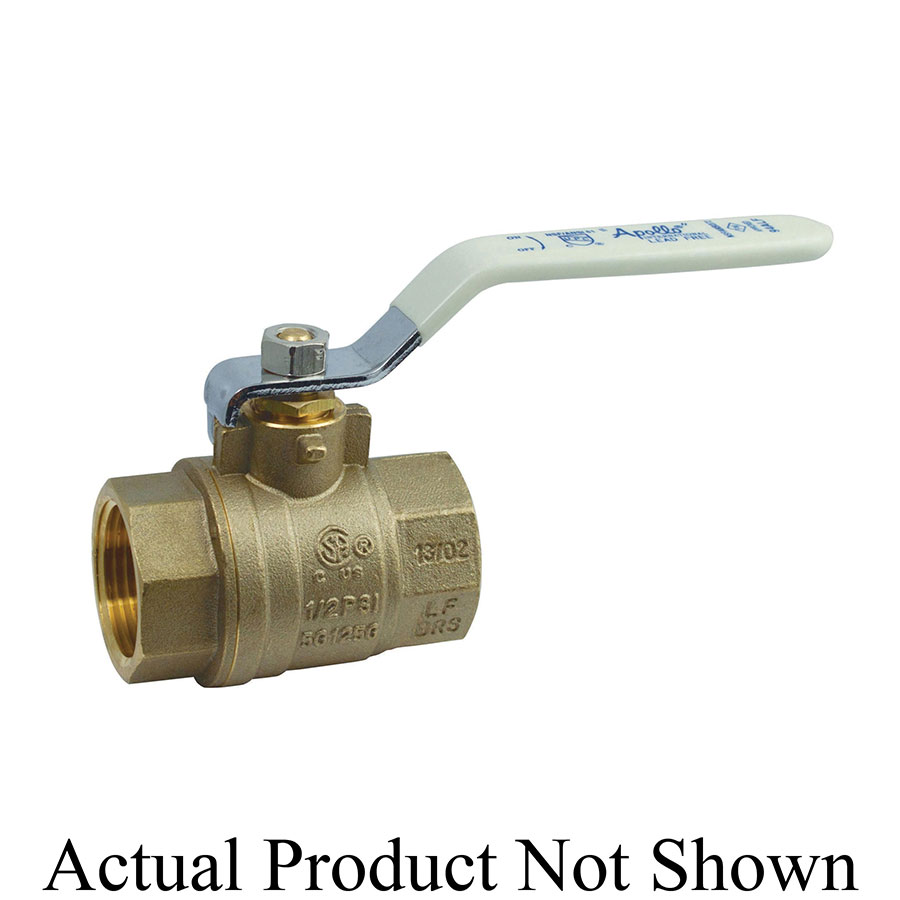

Apollo™ Apollo International™ 94ALF20301A 94ALF-A 2-Piece Ball Valve, 1/2 in Nominal, Solder End Style, Lead Free Brass Body, Full Port, PTFE Softgoods

CBPN:199520

UPC:670750968280

MPN:94ALF-203-01A

Price:
$13.70 / EA
Prop 65:
Enter in multiples of 50

DESCRIPTION

Apollo™, 94ALF20301A, Ball Valve, 2-Piece, Series: 94ALF-A, 1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Media: Gas/Fuel/Water, Lever Operated Actuator, 2.05 in Inlet to Outlet Length, 1.84 in Top to Inlet Center, Brass Stem and PTFE Seat Trim

The Apollo™ International® 94ALF-A Lead Free forged brass ball valves combine reliable operation with maximum economy. Now with multi-agency approvals, the 94ALF-A is ideal for gas, fuels, fire protection and general plumbing and HVAC applications including potable water. Valves are ANSI 3rd party Lead Free certified.

Apollo™ Apollo International™ 94ALF20301A 94ALF-A 2-Piece Ball Valve, 1/2 in Nominal, Solder End Style, Lead Free Brass Body, Full Port, PTFE Softgoods

CBPN:199520

MPN:94ALF-203-01A

UPC:670750968280

Price:
$13.70 / EA

Prop 65:
Enter in multiples of 50
Apollo Valve Logo

DESCRIPTION

Apollo™, 94ALF20301A, Ball Valve, 2-Piece, Series: 94ALF-A, 1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Media: Gas/Fuel/Water, Lever Operated Actuator, 2.05 in Inlet to Outlet Length, 1.84 in Top to Inlet Center, Brass Stem and PTFE Seat Trim

The Apollo™ International® 94ALF-A Lead Free forged brass ball valves combine reliable operation with maximum economy. Now with multi-agency approvals, the 94ALF-A is ideal for gas, fuels, fire protection and general plumbing and HVAC applications including potable water. Valves are ANSI 3rd party Lead Free certified.

Specifications

BrandApollo™
Weight0.38lbs
Actuator TypeLever Operated
Body MaterialLead Free Brass
End StyleSolder
Nominal Size1/2 in
Series94ALF-A
Temperature Rating0 to 400 deg F
Type2-Piece
Pressure Rating600 psi CWP
MediaGas/Fuel/Water
Port TypeFull
Softgoods MaterialPTFE
Trim MaterialBrass Stem and PTFE Seat
Ball MaterialChrome Plated Brass
Inlet to Outlet Length2.05 in
Manufacturer NameApollo Conbraco
Top to Inlet Center1.84 in
ApplicationIdeal for Gas, Fuels, Fire Protection, General Plumbing and HVAC
Warranty2 Years
Standards and ApprovalsIAPMO IGC 157 | FM Approved | Lead-Free Compliant | MSS SP-110 | NSF/ANSI 61-8 Annex F and G | NSF/ANSI 372 Lead-Free | UL YQNZ/YRBX/YRPV/YSDT/MHKZ | PROP65: Cancer and Reproductive Harm

Item Features

  • Blow-out proof stem
  • Distinctive white Lead free handle grip and blue Lead free hang tag
  • Adjustable stem packing nut
  • Multiple agency approvals
  • Lead free brass (DZR) retainer
  • UNS C37700 brass gland nut
  • Steel, plated (with PVC grip) handle
  • Plated steel handle nut
  • Lead free chrome plated brass ball
