Apollo™ 94A-105-01

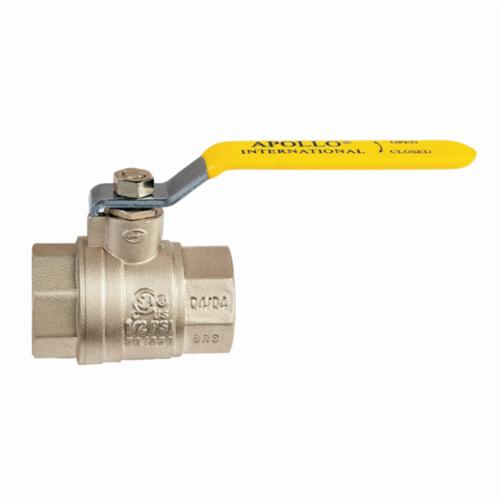

Apollo™ 94A10501 94A 2-Piece Ball Valve, 1 in Nominal, NPT End Style, Full Port, UL/FM Approved

CBPN:91602

UPC:670750823367

MPN:94A-105-01

Price:
$31.94 / EA
Prop 65:

DESCRIPTION

Apollo™ 94A10501, Ball Valve, 2-Piece, Series: 94A, 1 in Nominal, NPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Media: Gas, Lever Operated Actuator, 2.76 in Inlet to Outlet Length, 2.58 in Top to Inlet Center, Chrome Plated Brass Stem and PTFE Seat Trim

The Apollo™ International® 94A forged brass ball valves combine reliable operation with maximum economy. Ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain etc. Valves include most pertinent agency approvals.

Apollo™ 94A10501 94A 2-Piece Ball Valve, 1 in Nominal, NPT End Style, Full Port, UL/FM Approved

CBPN:91602

MPN:94A-105-01

UPC:670750823367

Price:
$31.94 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 94A10501, Ball Valve, 2-Piece, Series: 94A, 1 in Nominal, NPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Media: Gas, Lever Operated Actuator, 2.76 in Inlet to Outlet Length, 2.58 in Top to Inlet Center, Chrome Plated Brass Stem and PTFE Seat Trim

The Apollo™ International® 94A forged brass ball valves combine reliable operation with maximum economy. Ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain etc. Valves include most pertinent agency approvals.

Specifications

BrandApollo™
Weight1.1 lbs
Nominal Size1 in
End StyleNPT
Pressure Rating600 psi CWP
Body MaterialBrass
Port TypeFull
Softgoods MaterialPTFE
Actuator TypeLever Operated
Ball MaterialChrome Plated Brass
Inlet to Outlet Length2.76 in
Manufacturer NameApollo Conbraco
MediaGas
Series94A
Temperature Rating0 to 400 deg F
Top to Inlet Center2.58 in
Trim MaterialChrome Plated Brass Stem and PTFE Seat
Type2-Piece
ApplicationIdeal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain etc
Warranty2 Years
Standards and ApprovalsCSA File No. 226234 | MSS SP-110 | UL YQNZ/YRBX/YRPV/YSDT/MHKZ | UL 258 | FM 1140 | PROP65: Cancer and Reproductive Harm

Item Features

  • Blow-out proof stem
  • Adjustable stem packing nut
  • Silicone free
  • 100% factory tested
  • Forged brass (Cu >57 percent) retainer
  • Brass gland nut
  • Corrosion resistant plated steel handle and nut
  • 2-1/4 in memory stop option
