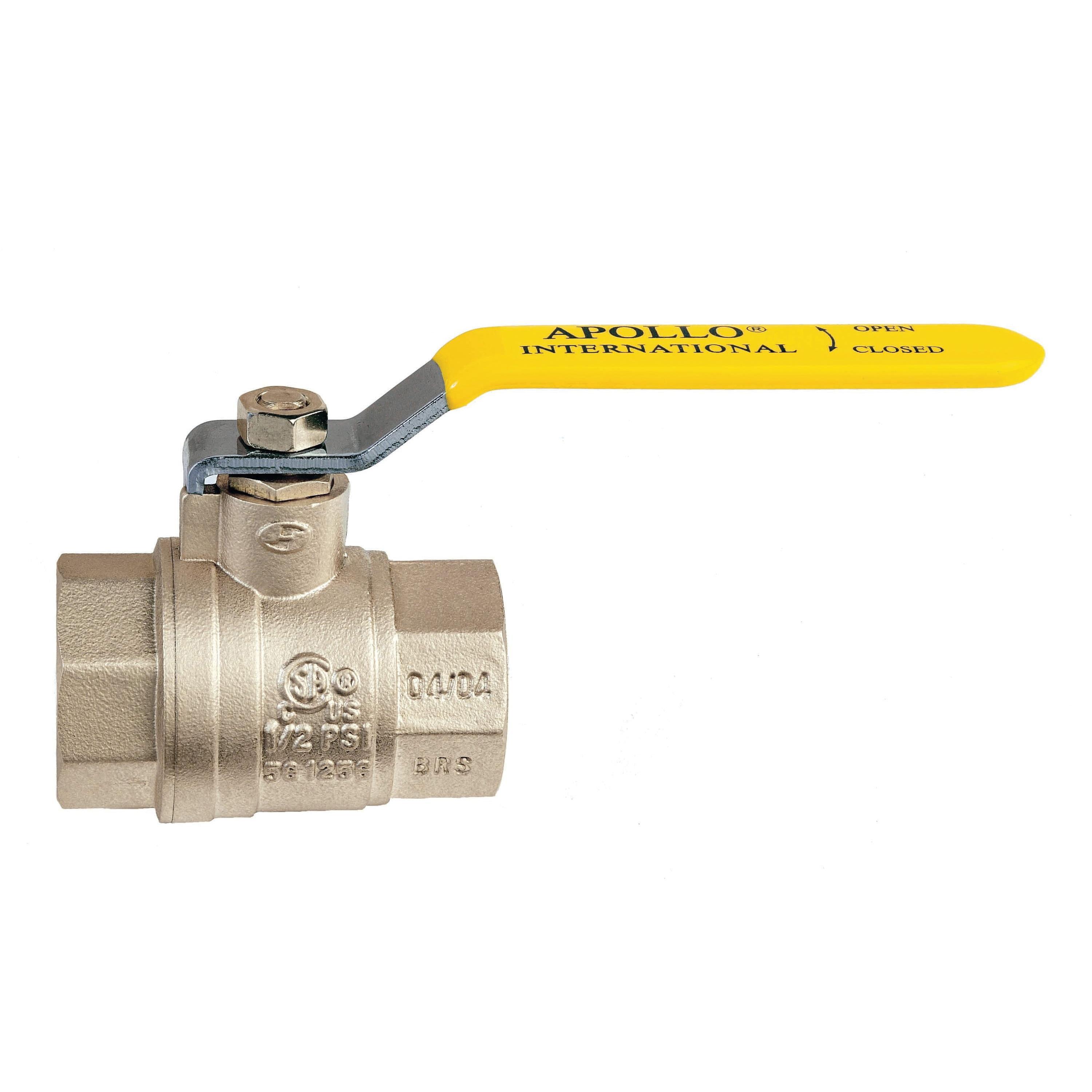

Apollo™ 94A10301 94A 2-Piece Ball Valve, 1/2 in Nominal, NPT End Style, Full Port, UL/FM Approved
CBPN:91604
UPC:670750823312
MPN:94A-103-01
Price:
$13.32 / EA
Prop 65:
DESCRIPTION
Apollo™ 94A10301, Ball Valve, 2-Piece, Series: 94A, 1/2 in Nominal, NPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Media: Gas, Lever Operated Actuator, 2.05 in Inlet to Outlet Length, 2.04 in Top to Inlet Center, Chrome Plated Brass Stem and PTFE Seat Trim
The Apollo™ International® 94A forged brass ball valves combine reliable operation with maximum economy. Ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain etc. Valves include most pertinent agency approvals.
Apollo™ 94A10301 94A 2-Piece Ball Valve, 1/2 in Nominal, NPT End Style, Full Port, UL/FM Approved
CBPN:91604
MPN:94A-103-01
UPC:670750823312
Price:
$13.32 / EA
Prop 65:
DESCRIPTION
Apollo™ 94A10301, Ball Valve, 2-Piece, Series: 94A, 1/2 in Nominal, NPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Media: Gas, Lever Operated Actuator, 2.05 in Inlet to Outlet Length, 2.04 in Top to Inlet Center, Chrome Plated Brass Stem and PTFE Seat Trim
The Apollo™ International® 94A forged brass ball valves combine reliable operation with maximum economy. Ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain etc. Valves include most pertinent agency approvals.
Specifications
Brand: Apollo™
Weight: 0.44 lbs
Nominal Size: 1/2 in
End Style: NPT
Pressure Rating: 600 psi CWP
Body Material: Brass
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Operated
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 2.05 in
Manufacturer Name: Apollo Conbraco
Media: Gas
Series: 94A
Temperature Rating: 0 to 400 deg F
Top to Inlet Center: 2.04 in
Trim Material: Chrome Plated Brass Stem and PTFE Seat
Type: 2-Piece
Application: Ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain etc
Warranty: 2 Years
Standards and Approvals: CSA File No. 226234 | MSS SP-110 | UL YQNZ/YRBX/YRPV/YSDT/MHKZ | UL 258 | FM 1140 | PROP65: Cancer and Reproductive Harm
Item Features
- Blow-out proof stem
- Adjustable stem packing nut
- Silicone free
- 100% factory tested
- Forged brass (Cu >57 percent) retainer
- Brass gland nut
- Corrosion resistant plated steel handle and nut
- 2-1/4 in memory stop option
