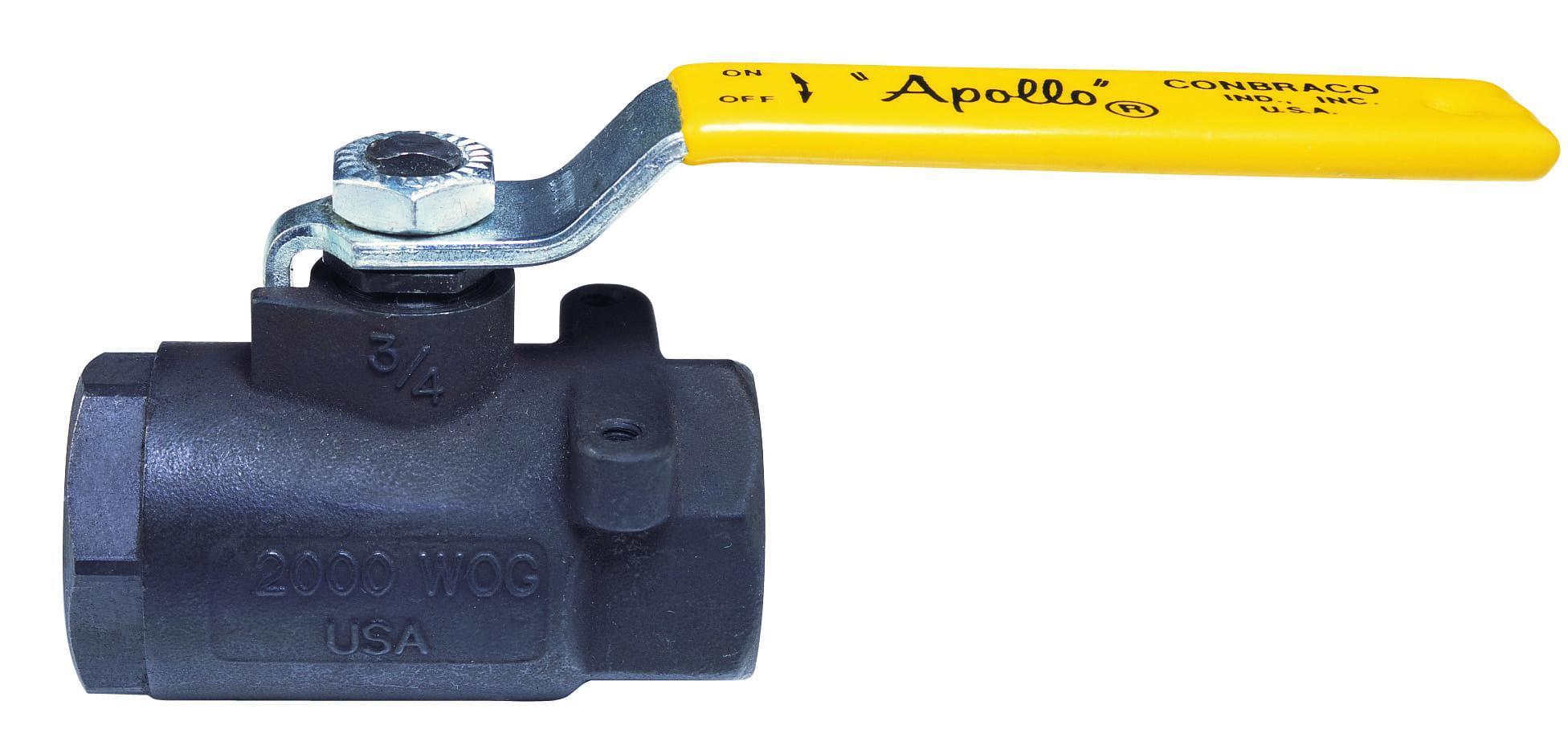

Apollo™ 8914324A 89-140 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Standard Port, Graphite/MPTFE/PTFE Softgoods, Domestic
CBPN: 246648
UPC:670750163326
MPN:89-143-24A
Apollo™ 89-143-24A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo™ 8914324A, Ball Valve, 2-Piece, Series: 89-140, 1/2 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Media: Gas/Water, 1/2 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 2.23 in Inlet to Outlet Length, 1.79 in Top to Inlet Center, 316 Stainless Steel/RPTFE Trim, Graphite/MPTFE/PTFE Softgoods, Domestic
Apollo™ 8914324A 89-140 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Standard Port, Graphite/MPTFE/PTFE Softgoods, Domestic
CBPN: 246648
MPN:89-143-24A
UPC:670750163326
Apollo™ 89-143-24A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo™ 8914324A, Ball Valve, 2-Piece, Series: 89-140, 1/2 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Media: Gas/Water, 1/2 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 2.23 in Inlet to Outlet Length, 1.79 in Top to Inlet Center, 316 Stainless Steel/RPTFE Trim, Graphite/MPTFE/PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 0.63 lbs
Nominal Size: 1/2 in
End Style: FNPT
Pressure Rating: 2000 psi CWP
Body Material: Carbon Steel
Port Type: Standard
Softgoods Material: Graphite/MPTFE/PTFE
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Inlet to Outlet Length: 2.23 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 1/2 in
Series: 89-140
Top to Inlet Center: 1.79 in
Trim Material: 316 Stainless Steel/RPTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 607 | ASTM A216 Body | ASTM A276 Stem/Ball | CSA CGA 3.16-M88 | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- 24 - RPTFE bearing
- Investment cast components
- Reinforced seat
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Zinc phosphate corrosion protection
- Cold non-shock body rating
- 150 psig saturated steam
- Not always fire safe
