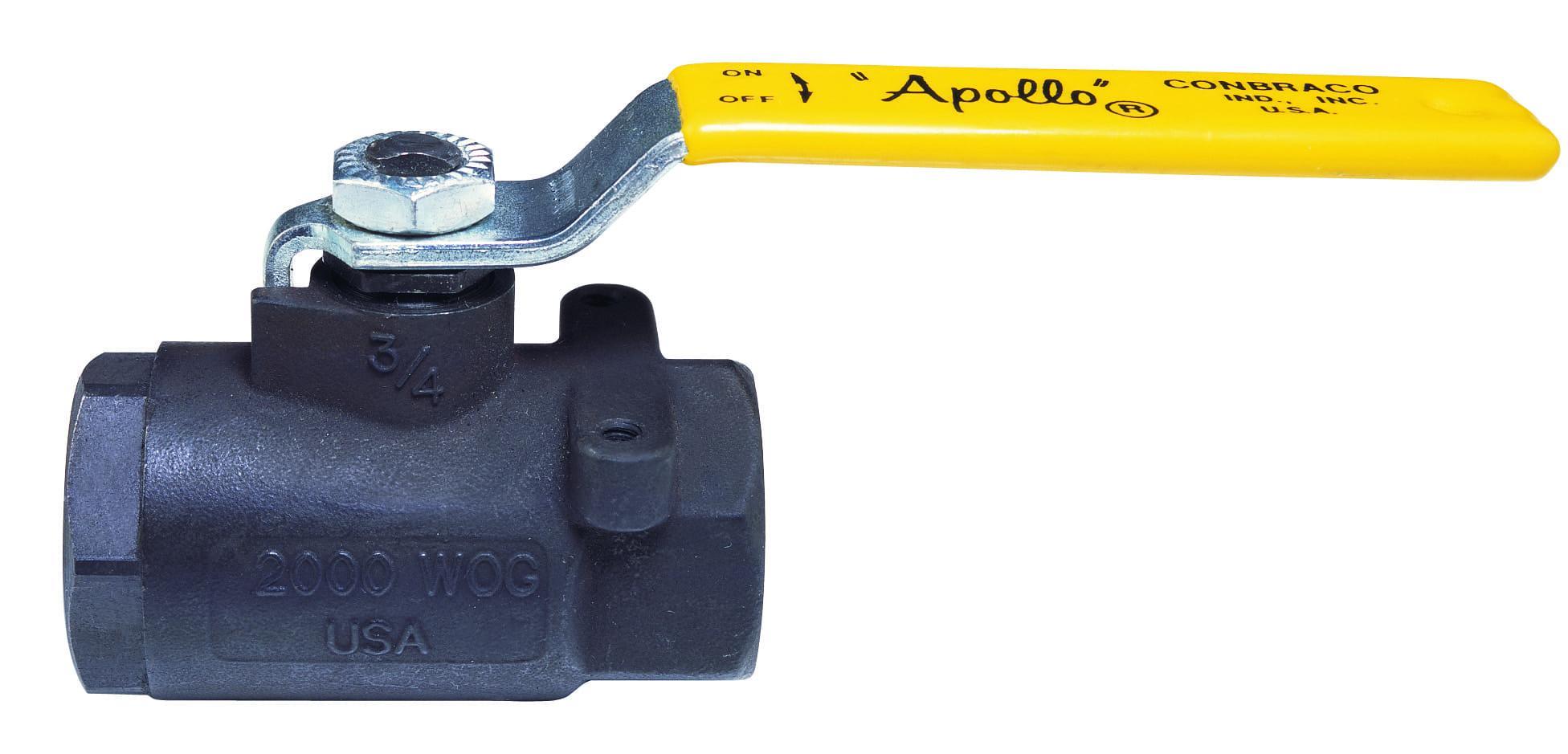

Apollo™ 8914201A 89-140 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Carbon Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
CBPN: 246646
UPC:670750205415
MPN:89-142-01A
Apollo™ 89-142-01A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo™ 8914201A, Ball Valve, 2-Piece, Series: 89-140, 3/8 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Media: Gas/Water, 0.37 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 2.05 in Inlet to Outlet Length, 1.71 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel/PTFE Trim, MPTFE/PTFE Softgoods, Domestic
Apollo™ 8914201A 89-140 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Carbon Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
CBPN: 246646
MPN:89-142-01A
UPC:670750205415
Apollo™ 89-142-01A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo™ 8914201A, Ball Valve, 2-Piece, Series: 89-140, 3/8 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Media: Gas/Water, 0.37 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 2.05 in Inlet to Outlet Length, 1.71 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel/PTFE Trim, MPTFE/PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 0.54 lbs
Nominal Size: 3/8 in
End Style: FNPT
Pressure Rating: 2000 psi CWP
Body Material: Carbon Steel
Port Type: Standard
Softgoods Material: MPTFE/PTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 2.05 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 0.37 in
Series: 89-140
Top to Inlet Center: 1.71 in
Trim Material: 316 Stainless Steel/PTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: NACE MR0175 (2000)/MR0103 (2003) | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Reinforced seat
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Zinc phosphate corrosion protection
- Zinc plated with vinyl steel lever and grip
- Zinc plated steel lever nut
- A216-WCB carbon steel body
- 150 psig saturated steam and PTFE body seal
