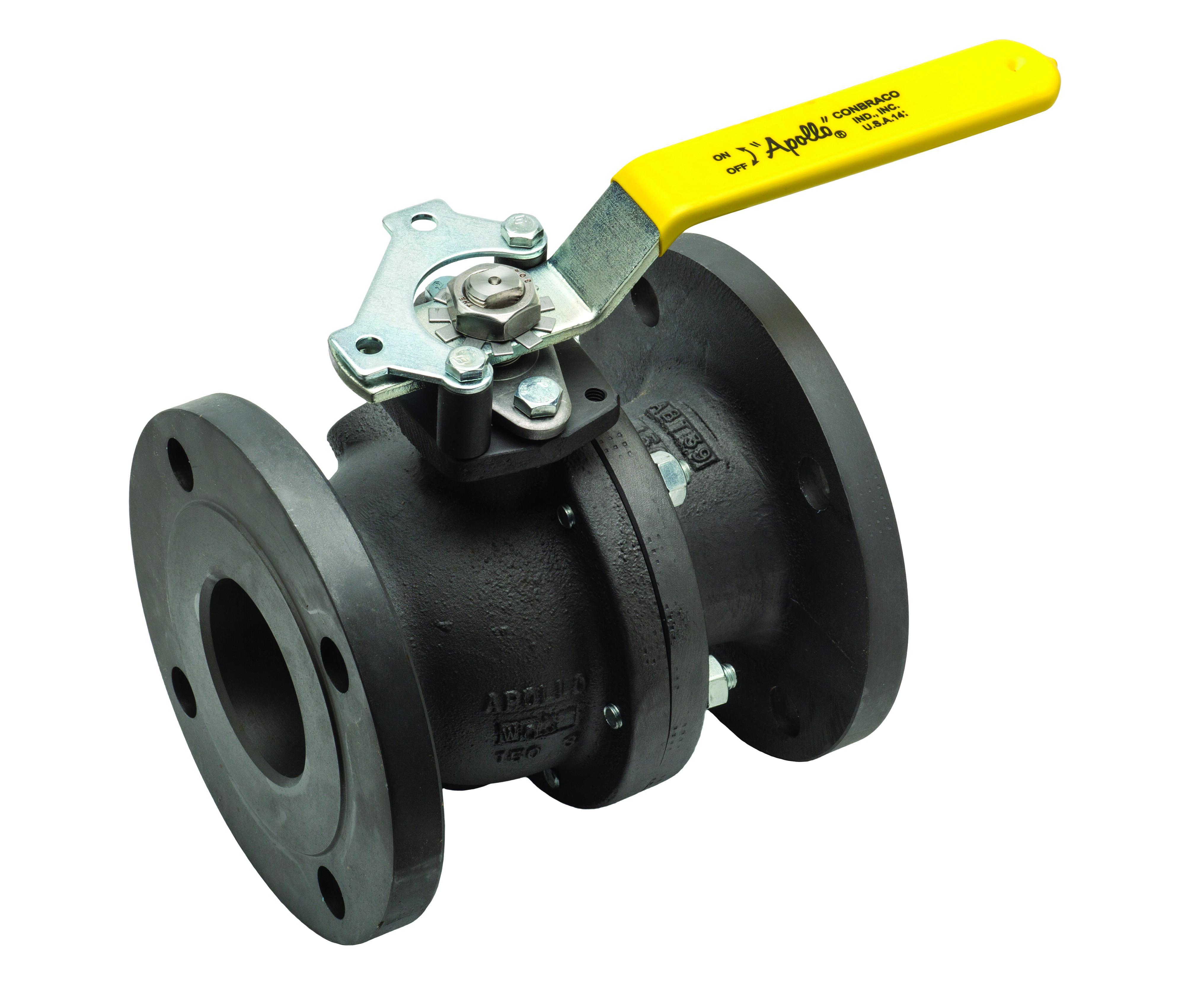

Apollo™ 88A70724A 88A-700 Ball Valve, 1-1/2 in Nominal, Flanged End Style, 300 lb, Standard Port, Graphite/PTFE Softgoods, Domestic
CBPN: 242474
UPC:670750760532
MPN:88A-707-24-A
Price:
$983.64 / EA
Prop 65:
DESCRIPTION
Apollo™ 88A70724A, Ball Valve, Series: 88A-700, 1-1/2 in Nominal, Raised Face Flanged End Style, 300 lb Pressure Class, Standard Port, Lever Operated Actuator, Chrome Plated Carbon Steel Ball, 7-1/2 in Inlet to Outlet Length, 4.85 in Top to Inlet Center, Graphite/PTFE Softgoods, Domestic
Apollo™ 88A70724A 88A-700 Ball Valve, 1-1/2 in Nominal, Flanged End Style, 300 lb, Standard Port, Graphite/PTFE Softgoods, Domestic
CBPN: 242474
MPN:88A-707-24-A
UPC:670750760532
Price:
$983.64 / EA
Prop 65:
DESCRIPTION
Apollo™ 88A70724A, Ball Valve, Series: 88A-700, 1-1/2 in Nominal, Raised Face Flanged End Style, 300 lb Pressure Class, Standard Port, Lever Operated Actuator, Chrome Plated Carbon Steel Ball, 7-1/2 in Inlet to Outlet Length, 4.85 in Top to Inlet Center, Graphite/PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 17.5 lbs
Nominal Size: 1-1/2 in
End Style: ANSI 300 Flange
Pressure Class: 300 lb
Body Material: Carbon Steel
Port Type: Standard
Softgoods Material: Graphite/PTFE
Actuator Type: Lever Operated
Ball Material: Chrome Plated Carbon Steel
Inlet to Outlet Length: 7-1/2 in
Manufacturer Name: Apollo Conbraco
Series: 88A-700
Top to Inlet Center: 4.85 in
Trim Material: Carbon Steel/RPTFE
Application: Potable and Non-Potable Applications
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 608 | ASME B16.34 | ASTM A216 WCB Body | ASTM A08 Type 1215 Ball/Stem | MSS SP-25/SP-72 | PROP65: Cancer and Reproductive Harm
Item Features
- 2-position locking device
- Chevron style adjustable stem seal bolt pattern
- Slot vented ball for thermal expansion
- Rated up to 150 psig saturated steam
- Anti-static grounded ball and stem
- Blow-out proof stem design
- Cast boss for bleed/drain port
- Vacuum service to 29 in Hg
