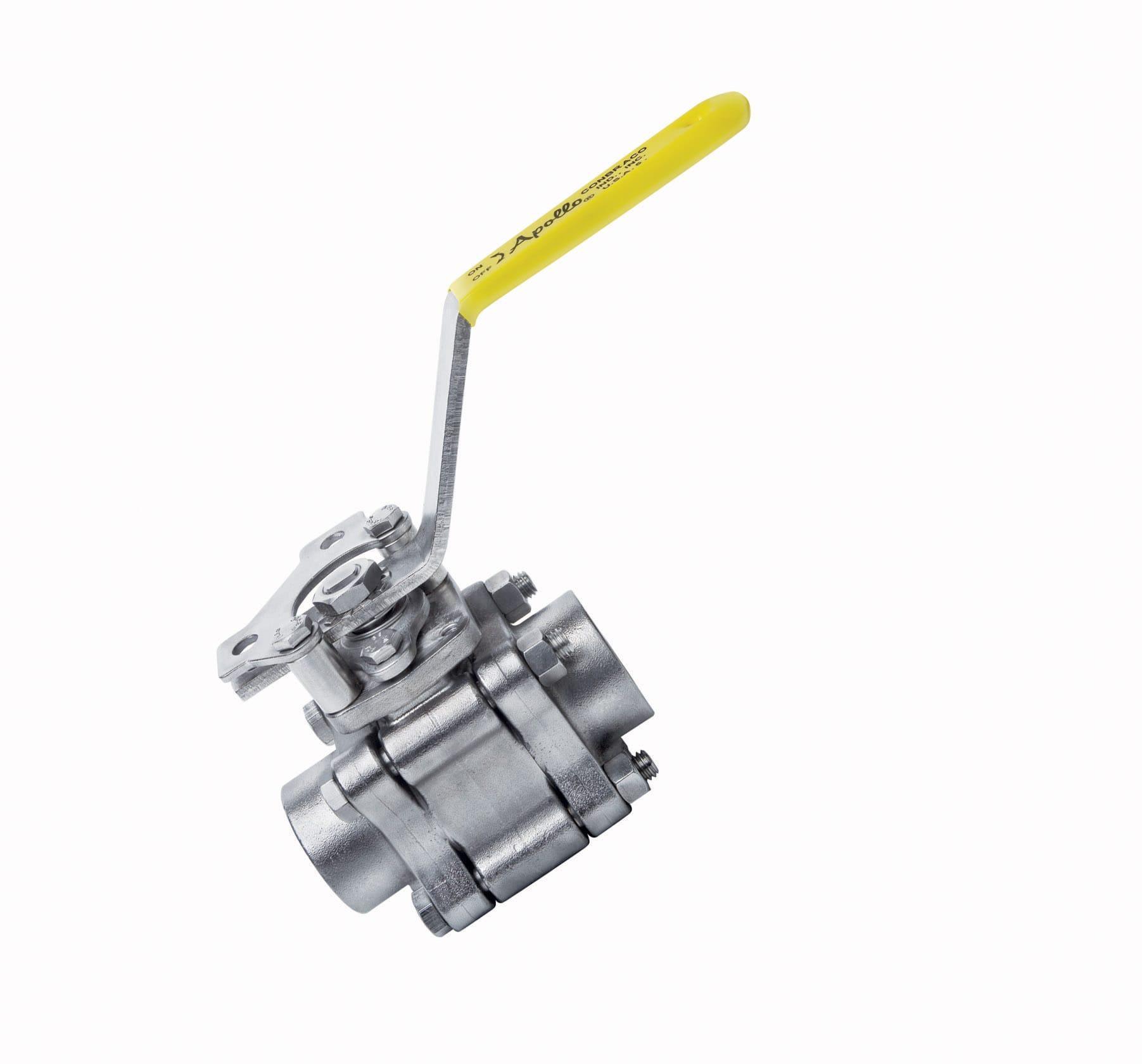

Apollo™ 86C-103-01 86C-100 86C-100 3-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, 600 lb, Alloy 20 Body
CBPN: 124169
UPC:670750203343
MPN:86C10301
Price:
$1022.54 / EA
Prop 65:
DESCRIPTION
Apollo™ 86C10301, Ball Valve, 3-Piece, Series: 86C-100, 1/2 in Nominal, NPT End Style, 250 psi Pressure, 600 lb Pressure Class, Full Port, Lever Handle Actuator, Nickel Alloy 20 Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, Alloy 20 Body, Nickel Alloy 20/Stainless Steel Trim, PTFE Softgoods, Domestic
Apollo™ 86C-103-01 86C-100 86C-100 3-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, 600 lb, Alloy 20 Body
CBPN: 124169
MPN:86C10301
UPC:670750203343
Price:
$1022.54 / EA
Prop 65:
DESCRIPTION
Apollo™ 86C10301, Ball Valve, 3-Piece, Series: 86C-100, 1/2 in Nominal, NPT End Style, 250 psi Pressure, 600 lb Pressure Class, Full Port, Lever Handle Actuator, Nickel Alloy 20 Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, Alloy 20 Body, Nickel Alloy 20/Stainless Steel Trim, PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 2.3 lbs
Nominal Size: 1/2 in
End Style: FNPT
Pressure Class: 600 lb
Pressure Rating: 250 psi
Body Material: Alloy 20
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Handle
Ball Material: Nickel Alloy 20
Inlet to Outlet Length: 2.8 in
Manufacturer Name: Apollo Conbraco
Series: 86C-100
Top to Inlet Center: 3.02 in
Trim Material: Nickel Alloy 20/Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A351-CN7M | ASTM UNS N08020/CN7M | ASTM B473 (UNS N08020) | ASME B16.34 | ASME B1.20.1 | API 608 | NACE MR0175 (2000)/MR0103 (2003) | PROP65: Cancer and Reproductive Harm
Item Features
- Stainless steel trim and hardware
- Swing out center section
- Pressure balanced solid ball
- Compression controlled spiral wound gaskets
- Anti-blowout one piece bottom entry stem
- Statically grounded ball, stem and body
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- Stainless steel trim and nickel alloy 20 stem
- Standard configuration
